Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

Scaled prices - Extension Spring Z-141BX

Quantity Single price [EUR]
1 6.7100 EUR
2 4.2300 EUR
3 3.0800 EUR
7 2.6300 EUR
17 1.3800 EUR
37 1.0500 EUR
75 0.8600 EUR
125 0.8600 EUR
175 0.8600 EUR
250 0.8600 EUR
350 0.8600 EUR
450 0.8600 EUR

Extension Spring Buy

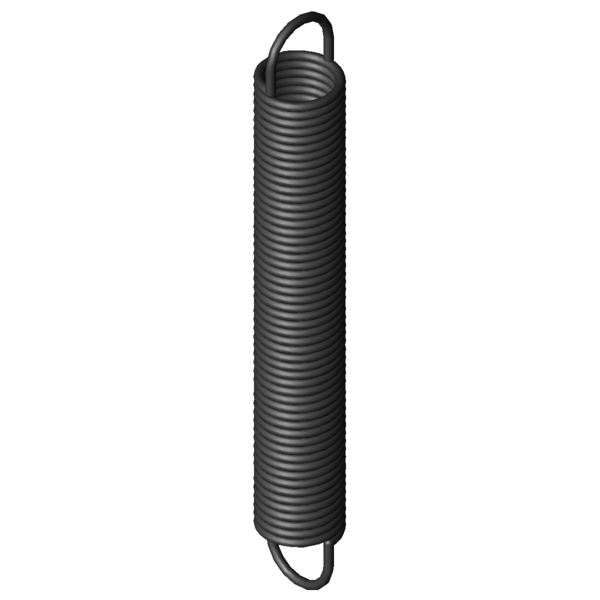

Product image Extension Spring Z-141BX
Product image Extension Spring Z-141BX
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-141BX

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 2 mm Wire diameter
D mm mean coil diameter
De 18 mm outer coil diameter
Dh 21.3 mm minimum bush diameter
L0 132 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 109.5 mm length of unstressed spring body
Ln 317.69 mm maximum spring length, inner loop to inner loop
sn 185.69 mm Maximum spring deflection
Fn 149.2 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 11.25 mm distance of inner edge of loop from the spring body
R 0.74 N/mm Spring rate
F0 11.81 N initial tension
Fntol 7.61 N (+/-) tolerance of maximum spring force
L0tol 2 mm (+/-) tolerance of unstressed length
Detol 0.3 mm (+/-) tolerance of outer coil diameter
Oesttol 42 degree (+/-) tolerance of loop position
Weight 69.23 g weight of one spring
Price group #ZL - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

force-path-calculation Extension Spring Z-141BX

Inquiry formular Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

Inquiry formular Extension Spring Z-141BX

Similar extension springs to Extension Spring Z-141BX Spring steel Ø 2 x 18 x 132 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-141BX EN 10270-1 2 18 132 149.2 317.69 185.69 0.74 62.8 | 87.9 | 62.1 | 38.6
RZ-141BX 1.4310 2 18 132 125.1 313.9 181.9 0.636 92.2 | 100.0 | 90.9 | 85.6
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-115V-16X 20 121 0.132 EN 10270-1 60.54 549.69 428.69 48.4 | 85.6 | 41.9 | 17.6
Z-121EX 17.6 149 0.21 EN 10270-1 82.12 510.42 361.42 56.8 | 88.8 | 53.2 | 28.3
Z-121DX 17.6 136 0.234 EN 10270-1 82.12 460.35 324.35 59.8 | 91.6 | 56.1 | 31.5
Z-121CX 17.6 123 0.268 EN 10270-1 82.12 405.9 282.9 62.3 | 90.3 | 60.3 | 36.1
Z-130K-01X 20 145 0.274 EN 10270-1 100.9 488.33 343.33 45.8 | 85.7 | 37.6 | 14.1
Z-130KX 20 136 0.297 EN 10270-1 100.9 452.82 316.82 47.3 | 87.6 | 39.1 | 15.3
Z-115V-27X 15 125.5 0.301 EN 10270-1 79.83 369.71 244.21 63.3 | 84.5 | 64.8 | 40.7
Z-121BX 17.6 111 0.303 EN 10270-1 82.12 361.49 250.49 45.6 | 80.6 | 40.4 | 15.7
Z-121NX 15.5 133 0.356 EN 10270-1 92.71 372.82 239.82 68.8 | 88.5 | 69.8 | 48.1
Z-121MX 15.5 120 0.403 EN 10270-1 92.71 331.85 211.85 71.7 | 85.7 | 74.9 | 54.5
Z-124DX 14.1 131 0.49 EN 10270-1 101.3 321.65 190.65 78.2 | 85.9 | 82.6 | 66.1
Z-138X 18.6 147 0.587 EN 10270-1 144.7 375.32 228.32 87.9 | 95.5 | 89.2 | 78.9
Z-130K-05X 16 134 0.605 EN 10270-1 124.8 324.03 190.03 88.3 | 92.5 | 90.7 | 81.7
Z-141CX 18 148 0.644 EN 10270-1 149.2 361.33 213.33 92.3 | 96.4 | 93.5 | 87.0
Z-141BX 18 132 0.74 EN 10270-1 149.2 317.69 185.69 62.8 | 87.9 | 62.1 | 38.6
Z-141AX 18 118 0.851 EN 10270-1 149.2 279.51 161.51 66.6 | 88.5 | 67.0 | 44.3
Z-147K-03X 20 134 0.868 EN 10270-1 176.1 319.96 185.96 68.8 | 93.4 | 67.5 | 45.4
Z-141X 18 104 1.001 EN 10270-1 149.2 241.32 137.32 84.6 | 92.9 | 87.0 | 74.0
Z-141HX 16 121 1.194 EN 10270-1 166.7 248.48 127.48 76.4 | 86.0 | 80.4 | 62.7
Z-156JX 20 123.5 1.916 EN 10270-1 249.9 243.4 119.9 100.0 | 100.0 | 100.0 | 100.0
Z-159AX 18.5 141 2.078 EN 10270-1 268.6 259.39 118.39 93.7 | 93.4 | 95.9 | 91.9
Z-159X 18.5 124 2.444 EN 10270-1 268.6 224.67 100.67 88.0 | 97.4 | 88.5 | 78.1
Z-162O-01X 20 146 2.879 EN 10270-1 341.5 255.1 109.1 80.0 | 91.3 | 82.1 | 66.6
Z-162OX 20 138 3.096 EN 10270-1 341.5 239.4 101.4 77.9 | 92.9 | 78.9 | 61.9
Z-162AX 15 136 4.358 EN 10270-1 324.5 203.71 67.71 48.3 | 86.8 | 41.2 | 16.8
Z-162U-42X 18 144.5 6 EN 10270-1 452.6 212.64 68.14 44.3 | 86.0 | 34.8 | 12.1
Z-177X 19.2 151 6.561 EN 10270-1 510 221.8 70.8 42.0 | 81.2 | 33.7 | 11.2
Z-162U-41X 18 123.5 7.244 EN 10270-1 452.6 179.94 56.44 56.1 | 91.1 | 51.1 | 26.0
Z-162U-40X 18 105.5 8.811 EN 10270-1 452.6 151.9 46.4 39.8 | 82.2 | 29.0 | 8.2
Z-177SX 18 111 23.15 EN 10270-1 739.6 139.84 28.84 40.1 | 83.1 | 28.9 | 8.1
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-141BX

Country of origin: DE, German; Extension Spring Z-141BX
