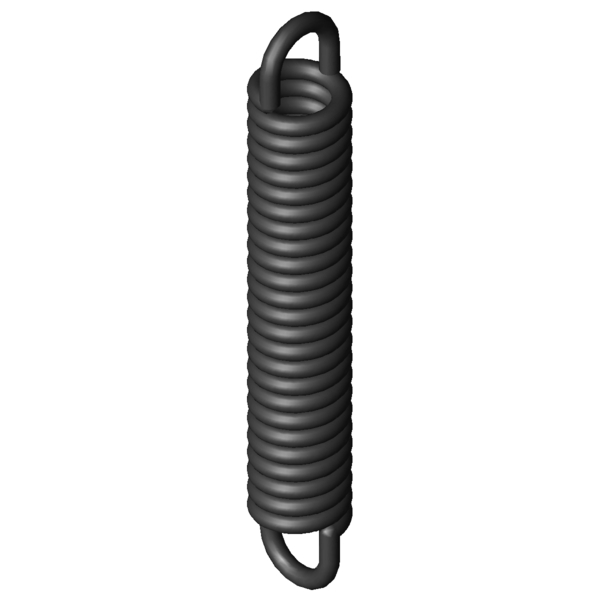

Home » Products » Extension Springs » z-177sx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° Scaled prices - Extension Spring Z-177SX Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 3.2800 EUR 37 3.2800 EUR 75 3.2800 EUR 125 3.2800 EUR 175 3.2800 EUR 250 3.2800 EUR 350 3.2800 EUR Extension Spring Buy Product image Extension Spring Z-177SX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177SX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 23.8 mm minimum bush diameter L0 111 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 92.7 mm length of unstressed spring body Ln 139.84 mm maximum spring length, inner loop to inner loop sn 28.84 mm Maximum spring deflection Fn 739.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 9.15 mm distance of inner edge of loop from the spring body R 23.15 N/mm Spring rate F0 72 N initial tension Fntol 78.73 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 26 degree (+/-) tolerance of loop position Weight 96.4876 g weight of one spring Price group ###AB - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° force-path-calculation Extension Spring Z-177SX Inquiry formular Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° Inquiry formular Extension Spring Z-177SX Similar extension springs to Extension Spring Z-177SX Spring steel Ø 3.6 x 18 x 111 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177SX EN 10270-1 3.6 18 111 739.6 139.84 28.84 23.15 100.0 | 100.0 | 100.0 | 100.0 RZ-177SX 1.4310 3.6 18 111 617.1 139.15 28.15 19.886 92.0 | 100.0 | 90.5 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-141AX 18 118 0.851 EN 10270-1 149.2 279.51 161.51 35.3 | 83.2 | 19.0 | 3.6 Z-141X 18 104 1.001 EN 10270-1 149.2 241.32 137.32 36.0 | 83.1 | 20.6 | 4.2 Z-137AX 18.6 95 1.025 EN 10270-1 144.7 225.6 130.6 34.8 | 79.3 | 20.8 | 4.3 Z-147K-02X 20 112 1.092 EN 10270-1 176.1 259.81 147.81 36.6 | 83.4 | 21.7 | 4.6 Z-141HX 16 121 1.194 EN 10270-1 166.7 248.48 127.48 35.5 | 78.7 | 22.6 | 5.1 Z-140AX 18 87.4 1.253 EN 10270-1 149.2 197.09 109.69 35.5 | 78.1 | 23.2 | 5.3 Z-144AX 14.5 112 1.785 EN 10270-1 182.5 204.92 92.92 38.0 | 78.4 | 27.9 | 7.7 Z-156JX 20 123.5 1.916 EN 10270-1 249.9 243.4 119.9 40.1 | 83.1 | 28.9 | 8.1 Z-159X 18.5 124 2.444 EN 10270-1 268.6 224.67 100.67 42.8 | 85.4 | 32.5 | 10.4 Z-147OX 15 107 2.863 EN 10270-1 229.9 180.06 73.06 42.6 | 80.3 | 35.3 | 12.3 Z-162N-01X 20 112 4.002 EN 10270-1 341.5 190.44 78.44 49.1 | 89.0 | 41.5 | 17.0 Z-162U-41X 18 123.5 7.244 EN 10270-1 452.6 179.94 56.44 59.5 | 91.1 | 56.1 | 31.3 Z-162U-40X 18 105.5 8.811 EN 10270-1 452.6 151.9 46.4 64.2 | 92.8 | 61.7 | 38.0 Z-176X 19.2 103 10.537 EN 10270-1 510 147.09 44.09 68.0 | 91.8 | 67.2 | 45.1 Z-177SX 18 111 23.15 EN 10270-1 739.6 139.84 28.84 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202085; Extension Spring Z-177SX Country of origin: DE, German; Extension Spring Z-177SX Product image - Extension Springs Z-177SX QR-Code: Extension Spring Z-177SX
