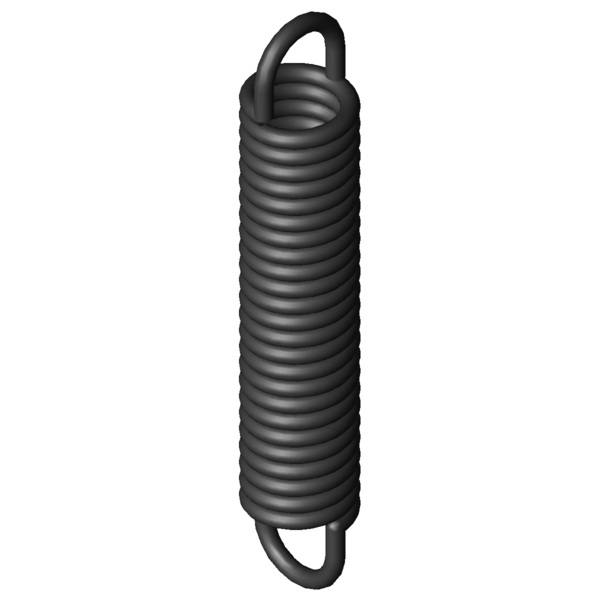

Home » Products » Extension Springs » z-176x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° Scaled prices - Extension Spring Z-176X Quantity Single price [EUR] 1 6.7100 EUR 2 4.2300 EUR 3 3.0800 EUR 7 2.6300 EUR 17 2.6300 EUR 37 2.6300 EUR 75 2.6300 EUR 125 2.6300 EUR 175 2.6300 EUR 250 2.6300 EUR 350 2.6300 EUR 450 2.6300 EUR Extension Spring Buy Product image Extension Spring Z-176X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-176X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 19.2 mm outer coil diameter Dh 24.3 mm minimum bush diameter L0 103 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 82.4 mm length of unstressed spring body Ln 147.09 mm maximum spring length, inner loop to inner loop sn 44.09 mm Maximum spring deflection Fn 510 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.3 mm distance of inner edge of loop from the spring body R 10.537 N/mm Spring rate F0 45.5 N initial tension Fntol 41.74 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 27 degree (+/-) tolerance of loop position Weight 84.71 g weight of one spring Price group ###ZL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° force-path-calculation Extension Spring Z-176X Inquiry formular Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° Inquiry formular Extension Spring Z-176X Similar extension springs to Extension Spring Z-176X Spring steel Ø 3.2 x 19.2 x 103 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-176X EN 10270-1 3.2 19.2 103 510 147.09 44.09 10.537 100.0 | 100.0 | 100.0 | 100.0 RZ-176X 1.4310 3.2 19.2 103 422.9 145.71 42.71 9.051 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-136X 22 110 0.513 EN 10270-1 123.3 333.3 223.3 36.0 | 81.1 | 22.0 | 4.8 Z-130K-04X 16 109 0.766 EN 10270-1 124.8 259.02 150.02 37.4 | 78.0 | 26.9 | 7.2 Z-141AX 18 118 0.851 EN 10270-1 149.2 279.51 161.51 39.1 | 81.2 | 28.3 | 8.0 Z-141X 18 104 1.001 EN 10270-1 149.2 241.32 137.32 41.7 | 85.1 | 30.7 | 9.4 Z-137AX 18.6 95 1.025 EN 10270-1 144.7 225.6 130.6 41.5 | 83.9 | 31.1 | 9.6 Z-147K-02X 20 112 1.092 EN 10270-1 176.1 259.81 147.81 42.7 | 85.6 | 32.2 | 10.3 Z-140AX 18 87.4 1.253 EN 10270-1 149.2 197.09 109.69 42.3 | 80.4 | 34.7 | 11.8 Z-147K-01X 20 90.9 1.472 EN 10270-1 176.1 200.57 109.67 45.2 | 84.3 | 37.4 | 13.9 Z-156HX 20 91 2.884 EN 10270-1 249.9 170.68 79.68 55.6 | 87.5 | 52.2 | 27.1 Z-156GX 20 86 3.126 EN 10270-1 249.9 159.49 73.49 56.6 | 85.9 | 54.5 | 29.4 Z-158X 18.5 86.6 3.925 EN 10270-1 268.6 149.28 62.68 61.6 | 86.2 | 61.5 | 37.0 Z-162N-01X 20 112 4.002 EN 10270-1 341.5 190.44 78.44 63.7 | 91.8 | 61.6 | 37.6 Z-162NX 20 95.8 4.972 EN 10270-1 341.5 158.96 63.16 69.1 | 92.2 | 68.4 | 46.7 Z-162U-40X 18 105.5 8.811 EN 10270-1 452.6 151.9 46.4 90.4 | 95.0 | 91.9 | 84.3 Z-176X 19.2 103 10.537 EN 10270-1 510 147.09 44.09 100.0 | 100.0 | 100.0 | 100.0 Z-162U-39X 18 86 11.78 EN 10270-1 452.6 120.7 34.7 87.6 | 90.3 | 83.7 | 88.7 Z-177SX 18 111 23.15 EN 10270-1 739.6 139.84 28.84 53.2 | 88.5 | 48.5 | 22.6 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-176X Country of origin: DE, German; Extension Spring Z-176X Product image - Extension Springs Z-176X QR-Code: Extension Spring Z-176X
