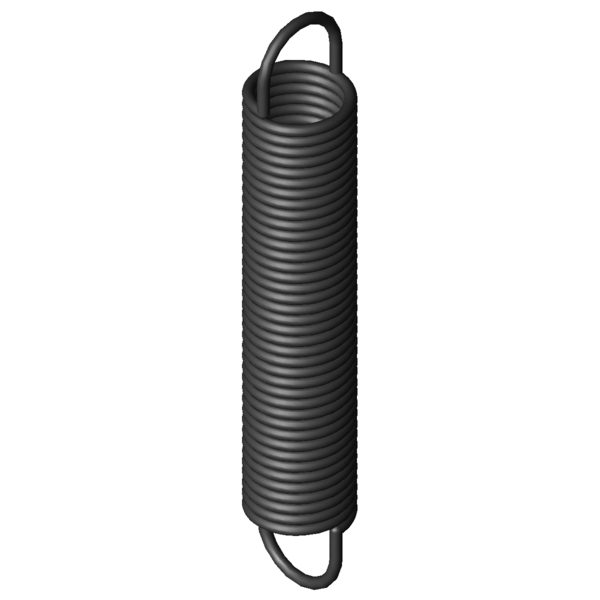

Home » Products » Extension Springs » z-141x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° Scaled prices - Extension Spring Z-141X Quantity Single price [EUR] 1 6.4000 EUR 2 4.0300 EUR 3 2.8200 EUR 7 2.3500 EUR 17 1.1600 EUR 37 0.8500 EUR 75 0.6900 EUR 125 0.6900 EUR 175 0.6900 EUR 250 0.6900 EUR 350 0.6900 EUR 450 0.6900 EUR Extension Spring Buy Product image Extension Spring Z-141X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-141X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 21.3 mm minimum bush diameter L0 104 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.5 mm length of unstressed spring body Ln 241.32 mm maximum spring length, inner loop to inner loop sn 137.32 mm Maximum spring deflection Fn 149.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.25 mm distance of inner edge of loop from the spring body R 1.001 N/mm Spring rate F0 11.81 N initial tension Fntol 7.92 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 51.85 g weight of one spring Price group #ZJ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° force-path-calculation Extension Spring Z-141X Inquiry formular Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° Inquiry formular Extension Spring Z-141X Similar extension springs to Extension Spring Z-141X Spring steel Ø 2 x 18 x 104 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-141X EN 10270-1 2 18 104 149.2 241.32 137.32 1.001 100.0 | 100.0 | 100.0 | 100.0 RZ-141X 1.4310 2 18 104 125.1 238.58 134.58 0.86 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115V-15X 20 109 0.152 EN 10270-1 60.54 482.15 373.15 46.8 | 86.8 | 38.7 | 14.9 Z-115V-14X 20 99 0.174 EN 10270-1 60.54 423.55 324.55 48.4 | 86.7 | 41.4 | 17.2 Z-115LX 15 105 0.26 EN 10270-1 66.08 337.89 232.89 54.0 | 84.1 | 51.6 | 26.1 Z-121CX 17.6 123 0.268 EN 10270-1 82.12 405.9 282.9 55.3 | 87.4 | 51.8 | 26.7 Z-121BX 17.6 111 0.303 EN 10270-1 82.12 361.49 250.49 58.5 | 90.5 | 54.9 | 30.2 Z-121AX 17.6 99.8 0.349 EN 10270-1 82.12 317.27 217.47 61.7 | 91.2 | 59.1 | 34.8 Z-115V-25X 15 101.5 0.39 EN 10270-1 79.83 289.69 188.19 53.1 | 84.1 | 50.3 | 24.8 Z-121X 17.6 88.6 0.41 EN 10270-1 82.12 273.72 185.12 64.4 | 87.7 | 64.6 | 40.8 Z-130JX 20 100 0.446 EN 10270-1 100.9 310.77 210.77 67.5 | 92.1 | 66.4 | 44.1 Z-121LX 15.5 107.5 0.463 EN 10270-1 92.71 291.9 184.4 55.3 | 89.8 | 50.6 | 25.6 Z-121KX 15.5 96 0.532 EN 10270-1 92.71 256.48 160.48 56.7 | 86.4 | 54.4 | 29.4 Z-124BX 14.1 105 0.636 EN 10270-1 101.3 251.88 146.88 61.6 | 90.3 | 59.4 | 35.1 Z-130K-04X 16 109 0.766 EN 10270-1 124.8 259.02 150.02 66.7 | 92.6 | 65.2 | 42.4 Z-141AX 18 118 0.851 EN 10270-1 149.2 279.51 161.51 91.2 | 96.0 | 92.5 | 85.0 Z-141X 18 104 1.001 EN 10270-1 149.2 241.32 137.32 100.0 | 100.0 | 100.0 | 100.0 Z-137AX 18.6 95 1.025 EN 10270-1 144.7 225.6 130.6 96.7 | 96.0 | 96.0 | 98.1 Z-147K-02X 20 112 1.092 EN 10270-1 176.1 259.81 147.81 90.4 | 91.3 | 88.8 | 91.2 Z-140AX 18 87.4 1.253 EN 10270-1 149.2 197.09 109.69 88.2 | 94.7 | 89.9 | 79.9 Z-159X 18.5 124 2.444 EN 10270-1 268.6 224.67 100.67 64.1 | 87.1 | 64.4 | 40.7 Z-147OX 15 107 2.863 EN 10270-1 229.9 180.06 73.06 78.6 | 94.4 | 79.0 | 62.4 Z-156HX 20 91 2.884 EN 10270-1 249.9 170.68 79.68 59.8 | 85.8 | 58.9 | 34.6 Z-158X 18.5 86.6 3.925 EN 10270-1 268.6 149.28 62.68 54.3 | 86.9 | 50.6 | 25.4 Z-162N-01X 20 112 4.002 EN 10270-1 341.5 190.44 78.44 53.4 | 84.8 | 50.4 | 25.0 Z-162NX 20 95.8 4.972 EN 10270-1 341.5 158.96 63.16 49.8 | 84.5 | 44.8 | 20.1 Z-162U-41X 18 123.5 7.244 EN 10270-1 452.6 179.94 56.44 44.7 | 83.6 | 37.0 | 13.5 Z-162U-40X 18 105.5 8.811 EN 10270-1 452.6 151.9 46.4 44.3 | 88.4 | 33.4 | 11.1 Z-176X 19.2 103 10.537 EN 10270-1 510 147.09 44.09 41.7 | 85.1 | 30.7 | 9.4 Z-162U-39X 18 86 11.78 EN 10270-1 452.6 120.7 34.7 40.2 | 83.1 | 29.1 | 8.3 Z-177SX 18 111 23.15 EN 10270-1 739.6 139.84 28.84 34.8 | 79.3 | 20.8 | 4.3 Number of similar metal springs: 28 Customs tariff number: 73202085; Extension Spring Z-141X Country of origin: DE, German; Extension Spring Z-141X Product image - Extension Springs Z-141X QR-Code: Extension Spring Z-141X
