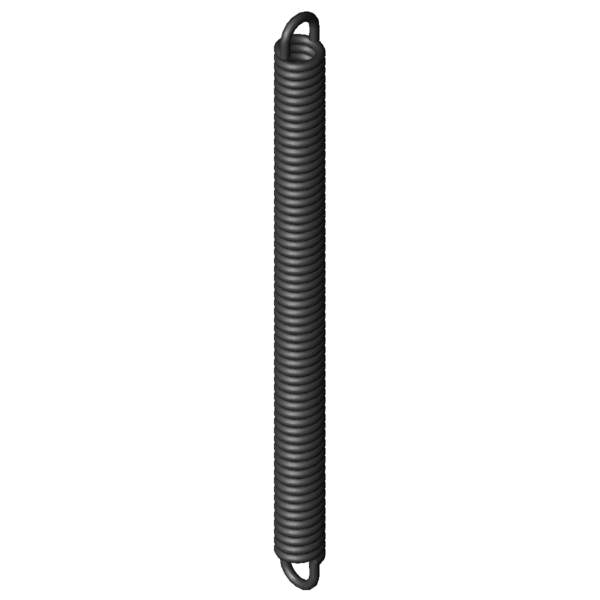

Home » Products » Extension Springs » z-162ux Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° Scaled prices - Extension Spring Z-162UX Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-162UX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-162UX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 2.8 mm Wire diameter D mm mean coil diameter De 14 mm outer coil diameter Dh 18.6 mm minimum bush diameter L0 184 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 170.1 mm length of unstressed spring body Ln 240.41 mm maximum spring length, inner loop to inner loop sn 56.41 mm Maximum spring deflection Fn 466.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 6.95 mm distance of inner edge of loop from the spring body R 7.459 N/mm Spring rate F0 46.11 N initial tension Fntol 44 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 40 degree (+/-) tolerance of loop position Weight 105.36 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° force-path-calculation Extension Spring Z-162UX Inquiry formular Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° Inquiry formular Extension Spring Z-162UX Similar extension springs to Extension Spring Z-162UX Spring steel Ø 2.8 x 14 x 184 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-162UX EN 10270-1 2.8 14 184 466.9 240.41 56.41 7.459 100.0 | 100.0 | 100.0 | 100.0 RZ-162UX 1.4310 2.8 14 184 386.7 238.64 54.64 6.407 91.8 | 100.0 | 89.8 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-144DX 14.5 158 1.197 EN 10270-1 182.5 296.64 138.64 46.8 | 84.6 | 39.9 | 15.9 Z-144CX 14.5 142 1.352 EN 10270-1 182.5 264.74 122.74 47.4 | 81.7 | 42.5 | 18.0 Z-144BX 14.5 126 1.553 EN 10270-1 182.5 232.84 106.84 48.5 | 78.8 | 45.9 | 20.6 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 51.7 | 87.4 | 46.8 | 20.7 Z-147PX 15 151 1.905 EN 10270-1 229.9 260.82 109.82 53.4 | 84.7 | 50.3 | 25.3 Z-147EX 12 170 2.096 EN 10270-1 216.4 263.86 93.86 54.8 | 83.2 | 53.2 | 27.9 Z-147DX 12 154.8 2.337 EN 10270-1 216.4 239 84.2 56.0 | 80.4 | 56.7 | 31.1 Z-162EX 15 213 2.621 EN 10270-1 324.5 325.64 112.64 61.4 | 89.7 | 59.8 | 34.8 Z-147CX 12 138 2.64 EN 10270-1 216.4 212.55 74.55 57.8 | 77.4 | 61.0 | 35.1 Z-162DX 15 193 2.912 EN 10270-1 324.5 294.05 101.05 64.7 | 92.7 | 62.7 | 38.8 Z-162CX 15 173 3.3 EN 10270-1 324.5 262.42 89.42 67.5 | 92.2 | 66.3 | 43.8 Z-162BX 15 153 3.791 EN 10270-1 324.5 230.84 77.84 70.0 | 88.6 | 71.0 | 50.4 Z-162AX 15 136 4.358 EN 10270-1 324.5 203.71 67.71 73.3 | 85.5 | 76.4 | 57.9 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 77.0 | 90.3 | 79.8 | 60.8 Z-162UX 14 184 7.459 EN 10270-1 466.9 240.41 56.41 100.0 | 100.0 | 100.0 | 100.0 Z-162TX 14 128 11.213 EN 10270-1 466.9 165.52 37.52 79.9 | 89.9 | 83.3 | 66.5 Z-177TX 18 165 14.42 EN 10270-1 739.6 211.32 46.32 68.7 | 81.7 | 72.6 | 51.8 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-162UX Country of origin: DE, German; Extension Spring Z-162UX Product image - Extension Springs Z-162UX QR-Code: Extension Spring Z-162UX
