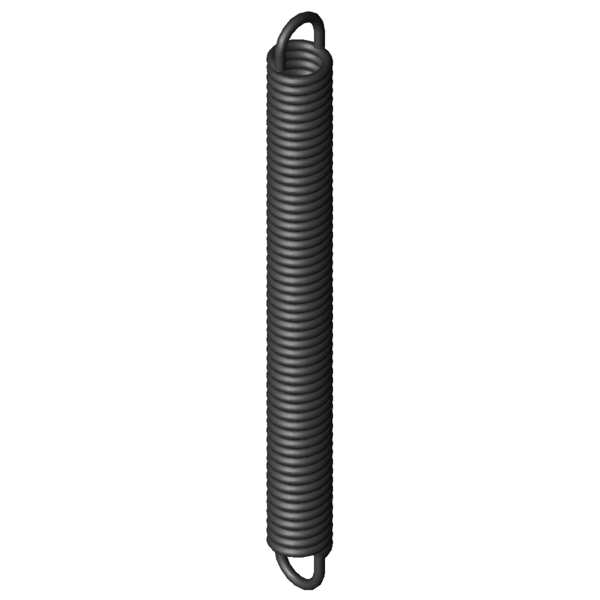

Home » Products » Extension Springs » z-162u-44x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° Scaled prices - Extension Spring Z-162U-44X Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 3.3200 EUR 37 3.3200 EUR 75 3.3200 EUR 125 3.3200 EUR 175 3.3200 EUR 250 3.3200 EUR 350 3.3200 EUR 450 3.3200 EUR Extension Spring Buy Product image Extension Spring Z-162U-44X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-162U-44X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 23.4 mm minimum bush diameter L0 183.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 164.25 mm length of unstressed spring body Ln 273.38 mm maximum spring length, inner loop to inner loop sn 89.88 mm Maximum spring deflection Fn 452.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 9.62 mm distance of inner edge of loop from the spring body R 4.549 N/mm Spring rate F0 43.8 N initial tension Fntol 32.7 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 39 degree (+/-) tolerance of loop position Weight 146.18 g weight of one spring Price group ###ZR - price group Technical drawing Extension Spring Datasheet Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° force-path-calculation Extension Spring Z-162U-44X Inquiry formular Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° Inquiry formular Extension Spring Z-162U-44X Similar extension springs to Extension Spring Z-162U-44X Spring steel Ø 3 x 18 x 183.5 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-162U-44X EN 10270-1 3 18 183.5 452.6 273.38 89.88 4.549 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-44X 1.4310 3 18 183.5 373.9 270.25 86.75 3.907 91.7 | 100.0 | 89.6 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-141KX 16 189 0.709 EN 10270-1 166.7 403.59 214.59 46.3 | 84.2 | 39.4 | 15.4 Z-156MX 20 203.5 1.05 EN 10270-1 249.9 422.42 218.92 52.9 | 87.8 | 48.1 | 22.7 Z-156LX 20 191 1.129 EN 10270-1 249.9 394.45 203.45 54.6 | 89.8 | 49.7 | 24.4 Z-159EX 18.5 219 1.25 EN 10270-1 268.6 415.9 196.9 55.9 | 88.1 | 52.5 | 27.1 Z-156KX 20 163.5 1.356 EN 10270-1 249.9 332.91 169.41 57.0 | 87.5 | 54.1 | 29.3 Z-159DX 18.5 199 1.393 EN 10270-1 268.6 375.64 176.64 58.8 | 90.9 | 55.1 | 30.2 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 61.7 | 92.7 | 58.4 | 34.1 Z-159BX 18.5 159 1.808 EN 10270-1 268.6 295.12 136.12 63.7 | 89.1 | 62.7 | 39.2 Z-162P-01X 20 202 1.961 EN 10270-1 341.5 362.09 160.09 66.5 | 91.4 | 65.8 | 42.4 Z-162PX 20 194 2.06 EN 10270-1 341.5 346.4 152.4 68.1 | 92.6 | 67.2 | 44.5 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 71.8 | 92.2 | 71.8 | 51.3 Z-162DX 15 193 2.912 EN 10270-1 324.5 294.05 101.05 77.1 | 87.2 | 80.3 | 63.8 Z-162CX 15 173 3.3 EN 10270-1 324.5 262.42 89.42 81.5 | 87.0 | 85.6 | 72.1 Z-162U-45X 18 207.5 3.96 EN 10270-1 452.6 310.76 103.26 92.2 | 96.1 | 93.5 | 87.0 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 100.0 | 100.0 | 100.0 | 100.0 Z-177BX 19.2 196 4.852 EN 10270-1 510 291.74 95.74 93.2 | 93.7 | 91.3 | 94.5 Z-162U-43X 18 162.5 5.23 EN 10270-1 452.6 240.68 78.18 92.2 | 96.2 | 93.5 | 87.0 Z-177AX 19.2 174 5.579 EN 10270-1 510 257.27 83.27 89.0 | 94.1 | 90.7 | 82.2 Z-162U-42X 18 144.5 6 EN 10270-1 452.6 212.64 68.14 85.5 | 92.9 | 87.9 | 75.8 Z-177X 19.2 151 6.561 EN 10270-1 510 221.8 70.8 81.2 | 89.9 | 83.8 | 69.9 Z-162UX 14 184 7.459 EN 10270-1 466.9 240.41 56.41 77.0 | 90.3 | 79.8 | 60.8 Z-177TX 18 165 14.42 EN 10270-1 739.6 211.32 46.32 59.7 | 91.1 | 56.4 | 31.5 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-162U-44X Country of origin: DE, German; Extension Spring Z-162U-44X Product image - Extension Springs Z-162U-44X QR-Code: Extension Spring Z-162U-44X
