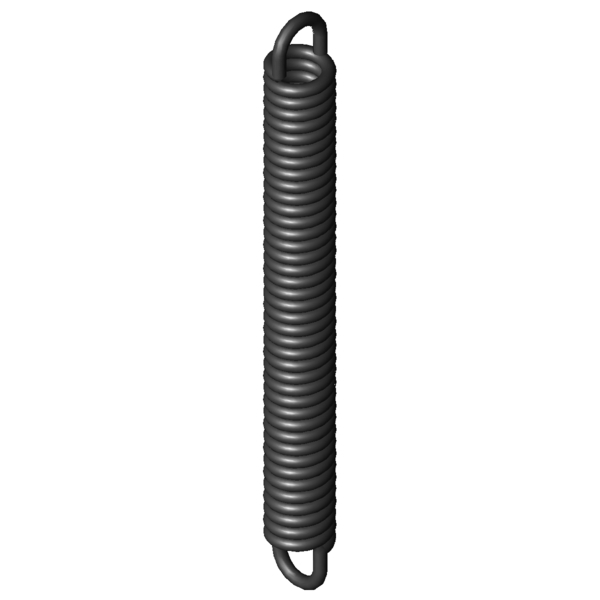

Home » Products » Extension Springs » z-177tx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° Scaled prices - Extension Spring Z-177TX Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 3.4700 EUR 37 3.4700 EUR 75 3.4700 EUR 125 3.4700 EUR 175 3.4700 EUR 250 3.4700 EUR 350 3.4700 EUR Extension Spring Buy Product image Extension Spring Z-177TX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177TX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 23.8 mm minimum bush diameter L0 165 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 146.7 mm length of unstressed spring body Ln 211.32 mm maximum spring length, inner loop to inner loop sn 46.32 mm Maximum spring deflection Fn 739.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 9.15 mm distance of inner edge of loop from the spring body R 14.42 N/mm Spring rate F0 72 N initial tension Fntol 71.8 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 33 degree (+/-) tolerance of loop position Weight 151.1033 g weight of one spring Price group ###AC - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° force-path-calculation Extension Spring Z-177TX Inquiry formular Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° Inquiry formular Extension Spring Z-177TX Similar extension springs to Extension Spring Z-177TX Spring steel Ø 3.6 x 18 x 165 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177TX EN 10270-1 3.6 18 165 739.6 211.32 46.32 14.42 100.0 | 100.0 | 100.0 | 100.0 RZ-177TX 1.4310 3.6 18 165 617.1 210.21 45.21 12.382 92.0 | 100.0 | 90.5 | 85.5 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156KX 20 163.5 1.356 EN 10270-1 249.9 332.91 169.41 42.0 | 86.2 | 30.6 | 9.2 Z-159DX 18.5 199 1.393 EN 10270-1 268.6 375.64 176.64 41.3 | 83.2 | 31.3 | 9.5 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 43.3 | 86.3 | 33.0 | 10.8 Z-159BX 18.5 159 1.808 EN 10270-1 268.6 295.12 136.12 45.1 | 87.7 | 35.2 | 12.4 Z-159AX 18.5 141 2.078 EN 10270-1 268.6 259.39 118.39 45.3 | 84.1 | 37.7 | 14.2 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 48.3 | 88.1 | 40.6 | 16.2 Z-162O-01X 20 146 2.879 EN 10270-1 341.5 255.1 109.1 49.8 | 85.4 | 44.3 | 19.6 Z-162CX 15 173 3.3 EN 10270-1 324.5 262.42 89.42 51.1 | 82.7 | 47.8 | 22.7 Z-162BX 15 153 3.791 EN 10270-1 324.5 230.84 77.84 53.2 | 81.8 | 51.7 | 26.1 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 59.7 | 91.1 | 56.4 | 31.5 Z-162U-43X 18 162.5 5.23 EN 10270-1 452.6 240.68 78.18 63.5 | 93.9 | 60.2 | 36.3 Z-177AX 19.2 174 5.579 EN 10270-1 510 257.27 83.27 64.4 | 92.5 | 62.3 | 38.4 Z-162U-42X 18 144.5 6 EN 10270-1 452.6 212.64 68.14 65.5 | 90.3 | 64.6 | 41.6 Z-177X 19.2 151 6.561 EN 10270-1 510 221.8 70.8 67.9 | 91.4 | 67.2 | 45.1 Z-177TX 18 165 14.42 EN 10270-1 739.6 211.32 46.32 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202085; Extension Spring Z-177TX Country of origin: DE, German; Extension Spring Z-177TX Product image - Extension Springs Z-177TX QR-Code: Extension Spring Z-177TX
