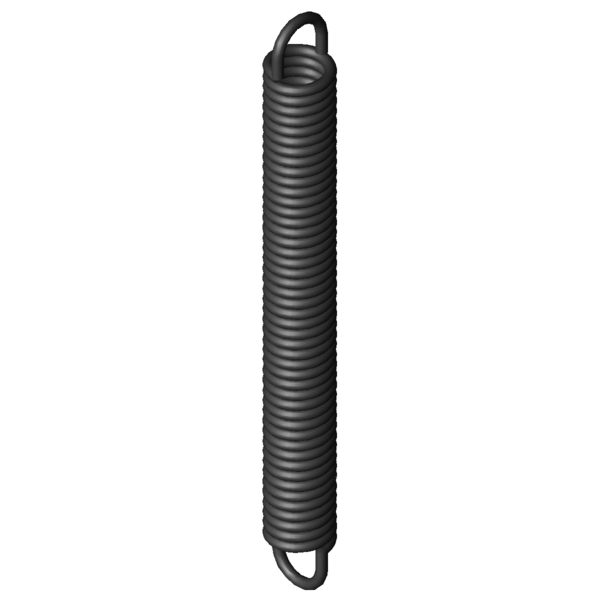

Home » Products » Extension Springs » z-177ax Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° Scaled prices - Extension Spring Z-177AX Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 3.1800 EUR 37 3.1800 EUR 75 3.1800 EUR 125 3.1800 EUR 175 3.1800 EUR 250 3.1800 EUR 350 3.1800 EUR 450 3.1800 EUR Extension Spring Buy Product image Extension Spring Z-177AX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177AX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 19.2 mm outer coil diameter Dh 24.3 mm minimum bush diameter L0 174 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 152.8 mm length of unstressed spring body Ln 257.27 mm maximum spring length, inner loop to inner loop sn 83.27 mm Maximum spring deflection Fn 510 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.6 mm distance of inner edge of loop from the spring body R 5.579 N/mm Spring rate F0 45.5 N initial tension Fntol 37.22 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 155.03 g weight of one spring Price group ###ZP - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° force-path-calculation Extension Spring Z-177AX Inquiry formular Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° Inquiry formular Extension Spring Z-177AX Similar extension springs to Extension Spring Z-177AX Spring steel Ø 3.2 x 19.2 x 174 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177AX EN 10270-1 3.2 19.2 174 510 257.27 83.27 5.579 100.0 | 100.0 | 100.0 | 100.0 RZ-177AX 1.4310 3.2 19.2 174 422.9 254.68 80.68 4.791 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156LX 20 191 1.129 EN 10270-1 249.9 394.45 203.45 51.1 | 88.4 | 45.0 | 20.1 Z-156KX 20 163.5 1.356 EN 10270-1 249.9 332.91 169.41 54.2 | 89.4 | 49.1 | 24.1 Z-159DX 18.5 199 1.393 EN 10270-1 268.6 375.64 176.64 54.0 | 87.3 | 49.9 | 24.8 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 57.2 | 90.6 | 53.0 | 28.0 Z-159BX 18.5 159 1.808 EN 10270-1 268.6 295.12 136.12 59.3 | 88.6 | 56.9 | 32.2 Z-162P-01X 20 202 1.961 EN 10270-1 341.5 362.09 160.09 61.4 | 89.9 | 59.5 | 34.8 Z-162PX 20 194 2.06 EN 10270-1 341.5 346.4 152.4 62.8 | 91.1 | 60.8 | 36.6 Z-159AX 18.5 141 2.078 EN 10270-1 268.6 259.39 118.39 61.2 | 85.2 | 61.5 | 37.0 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 67.0 | 93.9 | 65.0 | 42.2 Z-162O-01X 20 146 2.879 EN 10270-1 341.5 255.1 109.1 70.6 | 89.1 | 71.6 | 51.1 Z-162CX 15 173 3.3 EN 10270-1 324.5 262.42 89.42 74.3 | 85.2 | 78.4 | 59.3 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 89.0 | 94.1 | 90.7 | 82.2 Z-177BX 19.2 196 4.852 EN 10270-1 510 291.74 95.74 92.2 | 96.3 | 93.5 | 87.0 Z-162U-43X 18 162.5 5.23 EN 10270-1 452.6 240.68 78.18 93.2 | 93.6 | 91.3 | 94.5 Z-177AX 19.2 174 5.579 EN 10270-1 510 257.27 83.27 100.0 | 100.0 | 100.0 | 100.0 Z-177X 19.2 151 6.561 EN 10270-1 510 221.8 70.8 91.0 | 95.6 | 92.5 | 85.0 Z-177TX 18 165 14.42 EN 10270-1 739.6 211.32 46.32 64.4 | 92.5 | 62.3 | 38.4 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-177AX Country of origin: DE, German; Extension Spring Z-177AX Product image - Extension Springs Z-177AX QR-Code: Extension Spring Z-177AX
