Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

Scaled prices - Extension Spring Z-177PX

Quantity	Single price [EUR]
1	13.1800 EUR
2	10.5000 EUR
3	6.0600 EUR
7	3.9100 EUR
17	3.9100 EUR
37	3.9100 EUR
75	3.9100 EUR
125	3.9100 EUR
175	3.9100 EUR
250	3.9100 EUR
350	3.9100 EUR

Extension Spring Buy

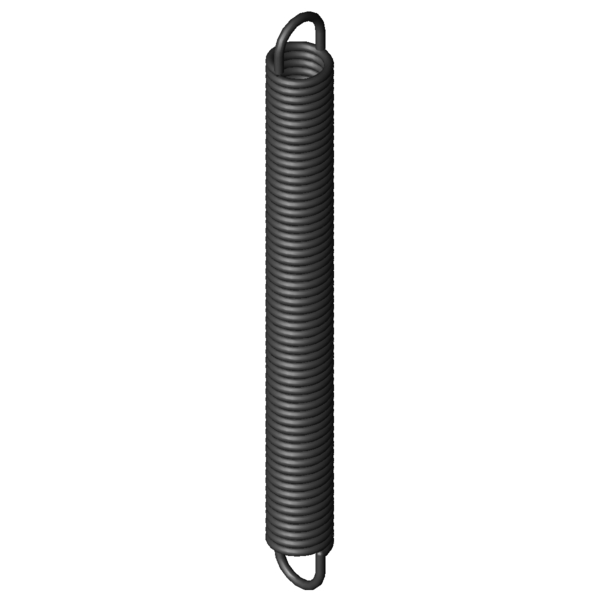

Product image Extension Spring Z-177PX

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177PX

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	3.6	mm	Wire diameter
D		mm	mean coil diameter
De	25	mm	outer coil diameter
Dh	30.8	mm	minimum bush diameter
L0	248	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	218.7	mm	length of unstressed spring body
Ln	425.41	mm	maximum spring length, inner loop to inner loop
sn	177.41	mm	Maximum spring deflection
Fn	555.1	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	14.65	mm	distance of inner edge of loop from the spring body
R	2.922	N/mm	Spring rate
F0	36.8	N	initial tension
Fntol	32.63	N	(+/-) tolerance of maximum spring force
L0tol	2.5	mm	(+/-) tolerance of unstressed length
Detol	0.35	mm	(+/-) tolerance of outer coil diameter
Oesttol	42	degree	(+/-) tolerance of loop position
Weight	332.7762	g	weight of one spring
Price group	###AE	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

force-path-calculation Extension Spring Z-177PX

Inquiry formular Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

Inquiry formular Extension Spring Z-177PX

Similar extension springs to Extension Spring Z-177PX Spring steel Ø 3.6 x 25 x 248 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-177PX	EN 10270-1	3.6	25	248	555.1	425.41	177.41	2.922	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-177PX	1.4310	3.6	25	248	463.3	420.91	172.91	2.51	92.0 \| 100.0 \| 90.5 \| 85.6

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-156EX	22.5	225	0.64	EN 10270-1	223.8	547.18	322.18	51.1 \| 83.4 \| 47.7 \| 22.2
Z-156DX	22.5	205	0.713	EN 10270-1	223.8	494.03	289.03	59.9 \| 88.3 \| 58.0 \| 33.3
Z-162K-04X	25	227	0.832	EN 10270-1	277.6	534.45	307.45	64.8 \| 93.3 \| 62.3 \| 38.8
Z-162K-03X	25	199	0.974	EN 10270-1	277.6	461.73	262.73	67.4 \| 89.2 \| 67.5 \| 45.4
Z-171DX	28.2	262	0.98	EN 10270-1	358.7	604.05	342.05	60.8 \| 90.7 \| 58.2 \| 33.5
Z-171CX	28.2	236	1.107	EN 10270-1	358.7	538.82	302.82	72.0 \| 93.0 \| 72.2 \| 50.9
Z-162U-36X	24	241	1.272	EN 10270-1	348.5	492.33	251.33	77.3 \| 95.0 \| 77.3 \| 59.6
Z-171BX	28.2	210	1.272	EN 10270-1	358.7	473.59	263.59	65.6 \| 87.4 \| 66.0 \| 43.5
Z-162U-35X	24	217	1.443	EN 10270-1	348.5	439.51	222.51	81.5 \| 95.2 \| 82.1 \| 67.3
Z-162U-34X	24	193	1.658	EN 10270-1	348.5	386.68	193.68	85.8 \| 91.7 \| 88.2 \| 77.3
Z-174EX	23.2	279	1.717	EN 10270-1	430.1	511.77	232.77	87.7 \| 93.9 \| 89.7 \| 79.4
Z-174DX	23.2	254	1.914	EN 10270-1	430.1	462.82	208.82	93.1 \| 96.6 \| 94.3 \| 88.5
Z-174CX	23.2	228	2.162	EN 10270-1	430.1	412.87	184.87	100.0 \| 100.0 \| 100.0 \| 100.0
Z-174BX	23.2	202	2.484	EN 10270-1	430.1	362.92	160.92	92.3 \| 96.2 \| 93.5 \| 87.0
Z-177PX	25	248	2.922	EN 10270-1	555.1	425.41	177.41	84.1 \| 91.2 \| 86.7 \| 74.4
Z-198X	29	253	3.105	EN 10270-1	645.8	446.81	193.81	91.4 \| 91.4 \| 88.7 \| 93.9
Z-197X	29	225	3.57	EN 10270-1	645.8	393.58	168.58	87.0 \| 89.0 \| 90.5 \| 81.7
Z-177DX	19.2	247	3.739	EN 10270-1	510	371.24	124.24	81.9 \| 88.4 \| 81.0 \| 76.2
Z-207X	24	277	5.279	EN 10270-1	765.7	409.01	132.01	63.4 \| 86.3 \| 63.8 \| 40.1
Z-227X	30	249	5.389	EN 10270-1	858.7	394.98	145.98	71.4 \| 87.6 \| 73.5 \| 53.2
Z-206X	24	245	6.065	EN 10270-1	765.7	359.9	114.9	61.3 \| 89.9 \| 59.2 \| 34.9
Z-205X	24	217	6.973	EN 10270-1	765.7	316.94	99.94	58.7 \| 90.6 \| 55.1 \| 30.4
Z-236X	25	309	7.853	EN 10270-1	1008	423.46	114.46	60.7 \| 86.8 \| 59.8 \| 35.5
Z-204X	24	193	8	EN 10270-1	765.7	280.11	87.11	55.1 \| 87.1 \| 51.6 \| 26.5
Z-235X	25	273	9.021	EN 10270-1	1008	372.63	99.63	58.9 \| 90.3 \| 55.6 \| 30.9
Z-256X	30	242	10	EN 10270-1	1134	344.44	102.44	55.3 \| 84.3 \| 53.3 \| 28.3
Z-234X	25	242	10.372	EN 10270-1	1008	328.66	86.66	50.3 \| 86.0 \| 44.8 \| 20.0
Z-233X	25	215	11.899	EN 10270-1	1008	290.54	75.54	48.4 \| 86.1 \| 41.8 \| 17.4
Z-232X	25	183	14.368	EN 10270-1	1008	245.56	62.56	49.7 \| 84.6 \| 45.2 \| 19.4

Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring Z-177PX

Country of origin: DE, German; Extension Spring Z-177PX
