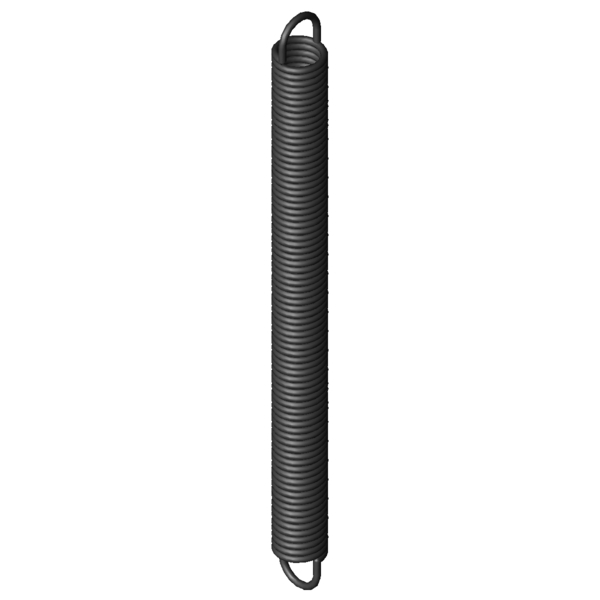

Home » Products » Extension Springs » z-174ex Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° Scaled prices - Extension Spring Z-174EX Quantity Single price [EUR] 1 8.2300 EUR 2 5.1800 EUR 3 4.2100 EUR 7 3.5900 EUR 17 3.5900 EUR 37 3.5900 EUR 75 3.5900 EUR 125 3.5900 EUR 175 3.5900 EUR 250 3.5900 EUR 350 3.5900 EUR 450 3.5900 EUR Extension Spring Buy Product image Extension Spring Z-174EX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-174EX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 23.2 mm outer coil diameter Dh 28.4 mm minimum bush diameter L0 279 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 252 mm length of unstressed spring body Ln 511.77 mm maximum spring length, inner loop to inner loop sn 232.77 mm Maximum spring deflection Fn 430.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 13.5 mm distance of inner edge of loop from the spring body R 1.717 N/mm Spring rate F0 30.4 N initial tension Fntol 23.95 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 49 degree (+/-) tolerance of loop position Weight 317.65 g weight of one spring Price group ###ZU - price group Technical drawing Extension Spring Datasheet Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° force-path-calculation Extension Spring Z-174EX Inquiry formular Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° Inquiry formular Extension Spring Z-174EX Similar extension springs to Extension Spring Z-174EX Spring steel Ø 3.2 x 23.2 x 279 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-174EX EN 10270-1 3.2 23.2 279 430.1 511.77 232.77 1.717 100.0 | 100.0 | 100.0 | 100.0 RZ-174EX 1.4310 3.2 23.2 279 356.7 504.35 225.35 1.475 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-153EX 27.5 234 0.328 EN 10270-1 184.9 756.69 522.69 48.3 | 82.1 | 43.8 | 19.1 Z-156EX 22.5 225 0.64 EN 10270-1 223.8 547.18 322.18 61.7 | 85.3 | 62.1 | 37.6 Z-156DX 22.5 205 0.713 EN 10270-1 223.8 494.03 289.03 63.7 | 82.9 | 66.3 | 41.9 Z-162K-04X 25 227 0.832 EN 10270-1 277.6 534.45 307.45 68.7 | 87.2 | 70.1 | 48.9 Z-171EX 28.2 287 0.879 EN 10270-1 358.7 668.28 381.28 72.1 | 93.2 | 72.2 | 50.9 Z-171DX 28.2 262 0.98 EN 10270-1 358.7 604.05 342.05 74.8 | 92.1 | 75.7 | 56.8 Z-162U-36X 24 241 1.272 EN 10270-1 348.5 492.33 251.33 84.7 | 92.3 | 86.8 | 75.0 Z-162U-35X 24 217 1.443 EN 10270-1 348.5 439.51 222.51 87.5 | 89.4 | 88.3 | 84.8 Z-162U-34X 24 193 1.658 EN 10270-1 348.5 386.68 193.68 88.7 | 86.5 | 82.1 | 97.4 Z-174EX 23.2 279 1.717 EN 10270-1 430.1 511.77 232.77 100.0 | 100.0 | 100.0 | 100.0 Z-174DX 23.2 254 1.914 EN 10270-1 430.1 462.82 208.82 93.9 | 97.0 | 94.9 | 89.7 Z-174CX 23.2 228 2.162 EN 10270-1 430.1 412.87 184.87 87.7 | 93.9 | 89.7 | 79.4 Z-174BX 23.2 202 2.484 EN 10270-1 430.1 362.92 160.92 81.5 | 90.8 | 84.6 | 69.1 Z-199X 29 285 2.703 EN 10270-1 645.8 507.67 222.67 76.9 | 86.0 | 81.1 | 63.7 Z-177PX 25 248 2.922 EN 10270-1 555.1 425.41 177.41 75.4 | 90.2 | 76.8 | 59.1 Z-198X 29 253 3.105 EN 10270-1 645.8 446.81 193.81 71.3 | 83.6 | 74.9 | 55.5 Z-177EX 19.2 273 3.354 EN 10270-1 510 411.49 138.49 71.9 | 93.5 | 71.9 | 50.2 Z-177DX 19.2 247 3.739 EN 10270-1 510 371.24 124.24 68.1 | 90.4 | 68.9 | 45.0 Z-209X 24 341 4.193 EN 10270-1 765.7 507.2 166.2 63.4 | 86.2 | 63.8 | 40.1 Z-208X 24 309 4.674 EN 10270-1 765.7 458.1 149.1 61.7 | 89.0 | 60.1 | 36.0 Z-228X 30 280 4.687 EN 10270-1 858.7 447.84 167.84 60.0 | 82.7 | 61.1 | 36.1 Z-207X 24 277 5.279 EN 10270-1 765.7 409.01 132.01 60.1 | 92.0 | 56.4 | 31.9 Z-206X 24 245 6.065 EN 10270-1 765.7 359.9 114.9 56.2 | 88.2 | 52.8 | 27.7 Z-237X 25 345 6.952 EN 10270-1 1008 474.29 129.29 51.5 | 81.6 | 49.1 | 23.7 Z-205X 24 217 6.973 EN 10270-1 765.7 316.94 99.94 52.8 | 84.8 | 49.6 | 24.1 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-174EX Country of origin: DE, German; Extension Spring Z-174EX Product image - Extension Springs Z-174EX QR-Code: Extension Spring Z-174EX
