Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

Scaled prices - Extension Spring Z-174DX

Quantity Single price [EUR]
1 8.0100 EUR
2 5.0500 EUR
3 4.1300 EUR
7 3.5200 EUR
17 3.5200 EUR
37 3.5200 EUR
75 3.5200 EUR
125 3.5200 EUR
175 3.5200 EUR
250 3.5200 EUR
350 3.5200 EUR
450 3.5200 EUR

Extension Spring Buy

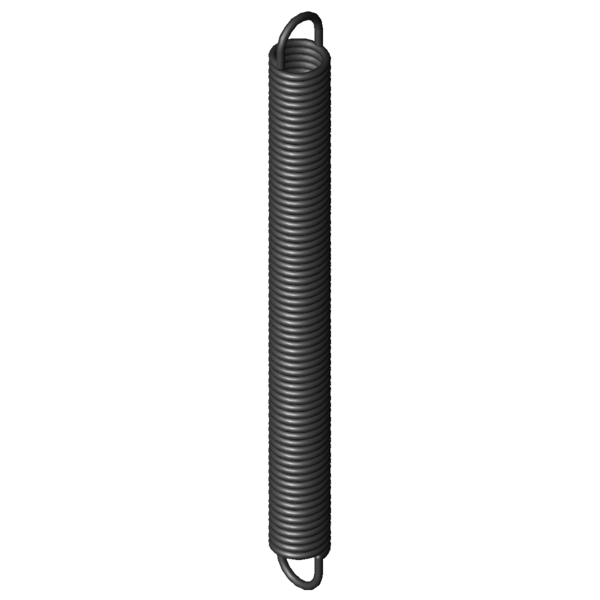

Product image Extension Spring Z-174DX
Product image Extension Spring Z-174DX
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-174DX

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 3.2 mm Wire diameter
D mm mean coil diameter
De 23.2 mm outer coil diameter
Dh 28.4 mm minimum bush diameter
L0 254 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 226.4 mm length of unstressed spring body
Ln 462.82 mm maximum spring length, inner loop to inner loop
sn 208.82 mm Maximum spring deflection
Fn 430.1 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 13.8 mm distance of inner edge of loop from the spring body
R 1.914 N/mm Spring rate
F0 30.4 N initial tension
Fntol 24.16 N (+/-) tolerance of maximum spring force
L0tol 3 mm (+/-) tolerance of unstressed length
Detol 0.35 mm (+/-) tolerance of outer coil diameter
Oesttol 46 degree (+/-) tolerance of loop position
Weight 285.5 g weight of one spring
Price group ###ZT - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

force-path-calculation Extension Spring Z-174DX

Inquiry formular Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

Inquiry formular Extension Spring Z-174DX

Similar extension springs to Extension Spring Z-174DX Spring steel Ø 3.2 x 23.2 x 254 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-174DX EN 10270-1 3.2 23.2 254 430.1 462.82 208.82 1.914 100.0 | 100.0 | 100.0 | 100.0
RZ-174DX 1.4310 3.2 23.2 254 356.7 456.17 202.17 1.644 91.8 | 100.0 | 89.9 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-153EX 27.5 234 0.328 EN 10270-1 184.9 756.69 522.69 47.8 | 84.9 | 41.5 | 17.2
Z-156EX 22.5 225 0.64 EN 10270-1 223.8 547.18 322.18 60.0 | 87.9 | 58.4 | 33.7
Z-156DX 22.5 205 0.713 EN 10270-1 223.8 494.03 289.03 61.7 | 85.3 | 62.1 | 37.6
Z-156CX 22.5 185 0.806 EN 10270-1 223.8 440.88 255.88 64.0 | 82.6 | 66.8 | 42.5
Z-162K-04X 25 227 0.832 EN 10270-1 277.6 534.45 307.45 66.7 | 89.9 | 66.2 | 43.8
Z-162K-03X 25 199 0.974 EN 10270-1 277.6 461.73 262.73 69.8 | 86.2 | 72.0 | 51.3
Z-171DX 28.2 262 0.98 EN 10270-1 358.7 604.05 342.05 72.1 | 93.1 | 72.2 | 50.9
Z-171CX 28.2 236 1.107 EN 10270-1 358.7 538.82 302.82 75.1 | 91.7 | 76.2 | 57.5
Z-162U-36X 24 241 1.272 EN 10270-1 348.5 492.33 251.33 81.5 | 95.1 | 82.1 | 67.3
Z-162U-35X 24 217 1.443 EN 10270-1 348.5 439.51 222.51 85.1 | 91.9 | 87.4 | 76.0
Z-162U-34X 24 193 1.658 EN 10270-1 348.5 386.68 193.68 87.7 | 88.8 | 86.9 | 87.4
Z-174EX 23.2 279 1.717 EN 10270-1 430.1 511.77 232.77 93.9 | 97.0 | 94.9 | 89.7
Z-174DX 23.2 254 1.914 EN 10270-1 430.1 462.82 208.82 100.0 | 100.0 | 100.0 | 100.0
Z-174CX 23.2 228 2.162 EN 10270-1 430.1 412.87 184.87 93.1 | 96.6 | 94.3 | 88.5
Z-174BX 23.2 202 2.484 EN 10270-1 430.1 362.92 160.92 86.3 | 93.2 | 88.5 | 77.1
Z-174AX 23.2 180 2.856 EN 10270-1 430.1 319.96 139.96 80.3 | 90.3 | 83.5 | 67.0
Z-177PX 25 248 2.922 EN 10270-1 555.1 425.41 177.41 80.1 | 93.1 | 81.2 | 65.8
Z-198X 29 253 3.105 EN 10270-1 645.8 446.81 193.81 76.0 | 86.5 | 79.7 | 61.8
Z-177EX 19.2 273 3.354 EN 10270-1 510 411.49 138.49 74.4 | 91.9 | 75.3 | 55.9
Z-177DX 19.2 247 3.739 EN 10270-1 510 371.24 124.24 71.8 | 93.3 | 71.9 | 50.2
Z-177CX 19.2 221 4.223 EN 10270-1 510 330.99 109.99 67.6 | 89.9 | 68.5 | 44.4
Z-208X 24 309 4.674 EN 10270-1 765.7 458.1 149.1 63.4 | 86.3 | 63.8 | 40.1
Z-207X 24 277 5.279 EN 10270-1 765.7 409.01 132.01 61.6 | 89.5 | 59.7 | 35.5
Z-206X 24 245 6.065 EN 10270-1 765.7 359.9 114.9 59.2 | 91.0 | 55.6 | 30.9
Z-205X 24 217 6.973 EN 10270-1 765.7 316.94 99.94 55.4 | 87.4 | 52.0 | 26.9
Z-236X 25 309 7.853 EN 10270-1 1008 423.46 114.46 51.4 | 82.0 | 48.7 | 23.4
Z-204X 24 193 8 EN 10270-1 765.7 280.11 87.11 52.2 | 84.2 | 48.9 | 23.4
Z-235X 25 273 9.021 EN 10270-1 1008 372.63 99.63 50.4 | 85.7 | 45.2 | 20.4
Number of similar metal springs: 27

Customs tariff number: 73202085; Extension Spring Z-174DX

Country of origin: DE, German; Extension Spring Z-174DX
