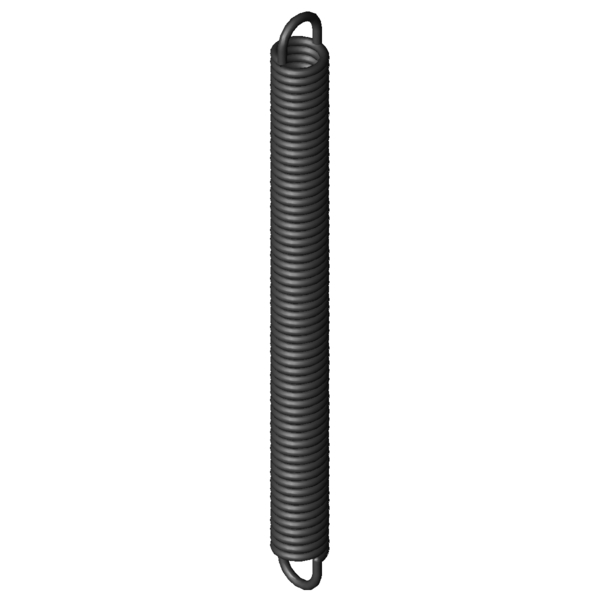

Home » Products » Extension Springs » z-177cx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° Scaled prices - Extension Spring Z-177CX Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 3.3200 EUR 37 3.3200 EUR 75 3.3200 EUR 125 3.3200 EUR 175 3.3200 EUR 250 3.3200 EUR 350 3.3200 EUR 450 3.3200 EUR Extension Spring Buy Product image Extension Spring Z-177CX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177CX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 19.2 mm outer coil diameter Dh 24.3 mm minimum bush diameter L0 221 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 200.8 mm length of unstressed spring body Ln 330.99 mm maximum spring length, inner loop to inner loop sn 109.99 mm Maximum spring deflection Fn 510 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.1 mm distance of inner edge of loop from the spring body R 4.223 N/mm Spring rate F0 45.5 N initial tension Fntol 36.14 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 42 degree (+/-) tolerance of loop position Weight 202.97 g weight of one spring Price group ###ZR - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° force-path-calculation Extension Spring Z-177CX Inquiry formular Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° Inquiry formular Extension Spring Z-177CX Similar extension springs to Extension Spring Z-177CX Spring steel Ø 3.2 x 19.2 x 221 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177CX EN 10270-1 3.2 19.2 221 510 330.99 109.99 4.223 100.0 | 100.0 | 100.0 | 100.0 RZ-177CX 1.4310 3.2 19.2 221 422.9 327.56 106.56 3.628 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156KX 20 163.5 1.356 EN 10270-1 249.9 332.91 169.41 57.2 | 82.7 | 57.0 | 31.8 Z-159DX 18.5 199 1.393 EN 10270-1 268.6 375.64 176.64 59.5 | 88.2 | 57.5 | 32.8 Z-162U-35X 24 217 1.443 EN 10270-1 348.5 439.51 222.51 61.1 | 90.6 | 58.9 | 33.8 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 61.2 | 85.2 | 61.5 | 37.0 Z-162P-01X 20 202 1.961 EN 10270-1 341.5 362.09 160.09 68.5 | 91.6 | 67.8 | 46.0 Z-162PX 20 194 2.06 EN 10270-1 341.5 346.4 152.4 69.4 | 90.4 | 69.6 | 48.3 Z-174CX 23.2 228 2.162 EN 10270-1 430.1 412.87 184.87 71.8 | 93.2 | 71.9 | 50.2 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 72.6 | 87.0 | 75.1 | 55.8 Z-174BX 23.2 202 2.484 EN 10270-1 430.1 362.92 160.92 75.1 | 91.4 | 76.3 | 57.6 Z-162EX 15 213 2.621 EN 10270-1 324.5 325.64 112.64 75.7 | 84.2 | 80.6 | 62.1 Z-177EX 19.2 273 3.354 EN 10270-1 510 411.49 138.49 87.6 | 93.7 | 89.7 | 79.4 Z-162U-46X 18 231.5 3.505 EN 10270-1 452.6 348.14 116.64 89.8 | 94.3 | 91.5 | 83.7 Z-177DX 19.2 247 3.739 EN 10270-1 510 371.24 124.24 93.1 | 96.5 | 94.3 | 88.5 Z-162U-45X 18 207.5 3.96 EN 10270-1 452.6 310.76 103.26 93.2 | 93.8 | 91.3 | 94.5 Z-177CX 19.2 221 4.223 EN 10270-1 510 330.99 109.99 100.0 | 100.0 | 100.0 | 100.0 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 89.2 | 90.2 | 85.2 | 92.1 Z-177BX 19.2 196 4.852 EN 10270-1 510 291.74 95.74 92.3 | 96.2 | 93.5 | 87.0 Z-177AX 19.2 174 5.579 EN 10270-1 510 257.27 83.27 85.5 | 92.9 | 87.9 | 75.7 Z-205X 24 217 6.973 EN 10270-1 765.7 316.94 99.94 75.1 | 86.1 | 78.7 | 60.5 Z-177UX 18 237 9.591 EN 10270-1 739.6 306.63 69.63 67.2 | 92.0 | 66.1 | 43.7 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-177CX Country of origin: DE, German; Extension Spring Z-177CX Product image - Extension Springs Z-177CX QR-Code: Extension Spring Z-177CX
