Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

Scaled prices - Extension Spring Z-177EX

Quantity	Single price [EUR]
1	7.8500 EUR
2	4.9500 EUR
3	4.0000 EUR
7	3.4100 EUR
17	3.4100 EUR
37	3.4100 EUR
75	3.4100 EUR
125	3.4100 EUR
175	3.4100 EUR
250	3.4100 EUR
350	3.4100 EUR
450	3.4100 EUR

Extension Spring Buy

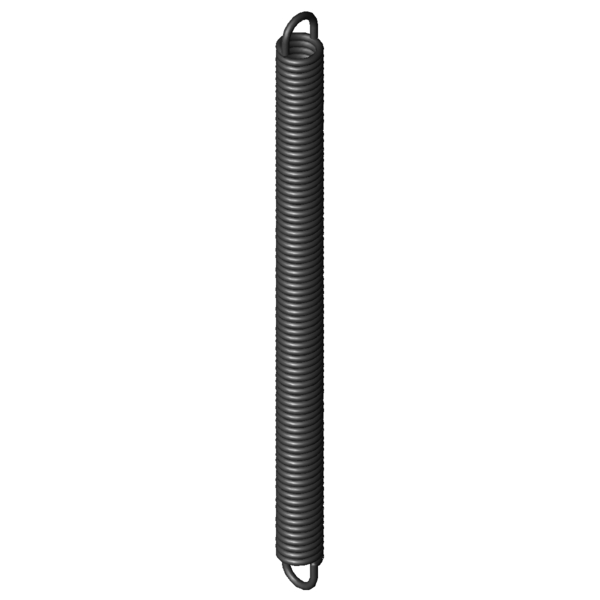

Product image Extension Spring Z-177EX

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177EX

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	3.2	mm	Wire diameter
D		mm	mean coil diameter
De	19.2	mm	outer coil diameter
Dh	24.3	mm	minimum bush diameter
L0	273	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	252	mm	length of unstressed spring body
Ln	411.49	mm	maximum spring length, inner loop to inner loop
sn	138.49	mm	Maximum spring deflection
Fn	510	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	10.5	mm	distance of inner edge of loop from the spring body
R	3.354	N/mm	Spring rate
F0	45.5	N	initial tension
Fntol	35.42	N	(+/-) tolerance of maximum spring force
L0tol	3	mm	(+/-) tolerance of unstressed length
Detol	0.3	mm	(+/-) tolerance of outer coil diameter
Oesttol	47	degree	(+/-) tolerance of loop position
Weight	254.3	g	weight of one spring
Price group	###ZS	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

force-path-calculation Extension Spring Z-177EX

Inquiry formular Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

Inquiry formular Extension Spring Z-177EX

Similar extension springs to Extension Spring Z-177EX Spring steel Ø 3.2 x 19.2 x 273 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-177EX	EN 10270-1	3.2	19.2	273	510	411.49	138.49	3.354	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-177EX	1.4310	3.2	19.2	273	422.9	407.17	134.17	2.881	91.8 \| 100.0 \| 89.9 \| 85.6

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-156NX	20	211	1.007	EN 10270-1	249.9	439.2	228.2	56.1 \| 83.8 \| 54.8 \| 29.7
Z-156MX	20	203.5	1.05	EN 10270-1	249.9	422.42	218.92	56.7 \| 82.9 \| 56.1 \| 31.0
Z-156LX	20	191	1.129	EN 10270-1	249.9	394.45	203.45	57.8 \| 81.4 \| 58.5 \| 33.4
Z-159EX	18.5	219	1.25	EN 10270-1	268.6	415.9	196.9	61.1 \| 84.9 \| 61.5 \| 37.0
Z-162U-36X	24	241	1.272	EN 10270-1	348.5	492.33	251.33	62.2 \| 87.3 \| 61.7 \| 37.7
Z-159DX	18.5	199	1.393	EN 10270-1	268.6	375.64	176.64	63.1 \| 82.5 \| 65.5 \| 41.3
Z-159CX	18.5	179	1.573	EN 10270-1	268.6	335.4	156.4	65.8 \| 80.0 \| 70.6 \| 46.6
Z-174EX	23.2	279	1.717	EN 10270-1	430.1	511.77	232.77	71.9 \| 93.5 \| 71.9 \| 50.2
Z-174DX	23.2	254	1.914	EN 10270-1	430.1	462.82	208.82	74.4 \| 91.9 \| 75.3 \| 55.9
Z-162P-01X	20	202	1.961	EN 10270-1	341.5	362.09	160.09	73.5 \| 85.8 \| 76.7 \| 57.9
Z-162PX	20	194	2.06	EN 10270-1	341.5	346.4	152.4	74.9 \| 84.9 \| 78.9 \| 60.8
Z-174CX	23.2	228	2.162	EN 10270-1	430.1	412.87	184.87	77.2 \| 88.8 \| 79.6 \| 63.2
Z-162O-02X	20	171	2.378	EN 10270-1	341.5	303.07	132.07	77.8 \| 82.0 \| 81.2 \| 70.2
Z-177PX	25	248	2.922	EN 10270-1	555.1	425.41	177.41	85.1 \| 85.5 \| 85.0 \| 85.0
Z-177EX	19.2	273	3.354	EN 10270-1	510	411.49	138.49	100.0 \| 100.0 \| 100.0 \| 100.0
Z-162U-46X	18	231.5	3.505	EN 10270-1	452.6	348.14	116.64	90.7 \| 90.8 \| 86.5 \| 94.9
Z-177DX	19.2	247	3.739	EN 10270-1	510	371.24	124.24	93.8 \| 96.8 \| 94.9 \| 89.7
Z-162U-45X	18	207.5	3.96	EN 10270-1	452.6	310.76	103.26	84.5 \| 87.8 \| 81.7 \| 84.0
Z-177CX	19.2	221	4.223	EN 10270-1	510	330.99	109.99	87.6 \| 93.7 \| 89.7 \| 79.4
Z-162U-44X	18	183.5	4.549	EN 10270-1	452.6	273.38	89.88	78.3 \| 84.9 \| 76.8 \| 73.1
Z-208X	24	309	4.674	EN 10270-1	765.7	458.1	149.1	78.1 \| 82.8 \| 79.7 \| 71.7
Z-177BX	19.2	196	4.852	EN 10270-1	510	291.74	95.74	81.4 \| 90.6 \| 84.6 \| 69.1
Z-207X	24	277	5.279	EN 10270-1	765.7	409.01	132.01	76.9 \| 86.2 \| 81.0 \| 63.5
Z-177AX	19.2	174	5.579	EN 10270-1	510	257.27	83.27	76.0 \| 87.9 \| 80.1 \| 60.1
Z-206X	24	245	6.065	EN 10270-1	765.7	359.9	114.9	71.1 \| 83.2 \| 74.8 \| 55.3
Z-235X	25	273	9.021	EN 10270-1	1008	372.63	99.63	60.1 \| 82.6 \| 61.3 \| 36.4
Z-177UX	18	237	9.591	EN 10270-1	739.6	306.63	69.63	61.4 \| 89.8 \| 59.6 \| 34.7
Z-234X	25	242	10.372	EN 10270-1	1008	328.66	86.66	55.7 \| 78.9 \| 56.6 \| 31.7

Number of similar metal springs: 27

Customs tariff number: 73202085; Extension Spring Z-177EX

Country of origin: DE, German; Extension Spring Z-177EX

Product image - Extension Springs Z-177EX

QR-Code: Extension Spring Z-177EX

QR-Code - Extension Springs - Z-177EX | https://www.federnshop.com/en/products/extension_springs/z-177ex.html
