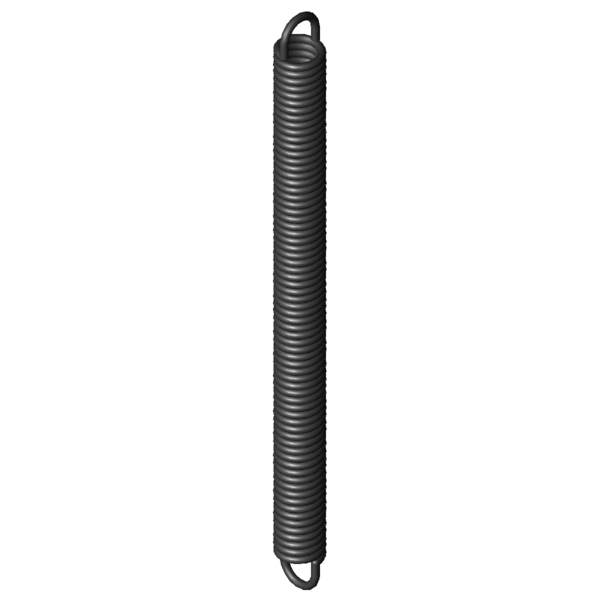

Home » Products » Extension Springs » z-162u-46x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° Scaled prices - Extension Spring Z-162U-46X Quantity Single price [EUR] 1 8.0100 EUR 2 5.0500 EUR 3 4.1300 EUR 7 3.5200 EUR 17 3.5200 EUR 37 3.5200 EUR 75 3.5200 EUR 125 3.5200 EUR 175 3.5200 EUR 250 3.5200 EUR 350 3.5200 EUR 450 3.5200 EUR Extension Spring Buy Product image Extension Spring Z-162U-46X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-162U-46X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 23.4 mm minimum bush diameter L0 231.5 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 212.25 mm length of unstressed spring body Ln 348.14 mm maximum spring length, inner loop to inner loop sn 116.64 mm Maximum spring deflection Fn 452.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 9.62 mm distance of inner edge of loop from the spring body R 3.505 N/mm Spring rate F0 43.8 N initial tension Fntol 31.98 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 45 degree (+/-) tolerance of loop position Weight 188.5 g weight of one spring Price group ###ZT - price group Technical drawing Extension Spring Datasheet Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° force-path-calculation Extension Spring Z-162U-46X Inquiry formular Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° Inquiry formular Extension Spring Z-162U-46X Similar extension springs to Extension Spring Z-162U-46X Spring steel Ø 3 x 18 x 231.5 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-162U-46X EN 10270-1 3 18 231.5 452.6 348.14 116.64 3.505 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-46X 1.4310 3 18 231.5 373.9 344.07 112.57 3.011 91.7 | 100.0 | 89.6 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156NX 20 211 1.007 EN 10270-1 249.9 439.2 228.2 56.5 | 88.2 | 53.2 | 28.2 Z-156MX 20 203.5 1.05 EN 10270-1 249.9 422.42 218.92 56.9 | 87.1 | 54.2 | 29.4 Z-156LX 20 191 1.129 EN 10270-1 249.9 394.45 203.45 57.7 | 85.3 | 56.3 | 31.7 Z-159EX 18.5 219 1.25 EN 10270-1 268.6 415.9 196.9 62.1 | 91.7 | 59.3 | 35.2 Z-159DX 18.5 199 1.393 EN 10270-1 268.6 375.64 176.64 63.6 | 88.9 | 62.7 | 39.2 Z-159CX 18.5 179 1.573 EN 10270-1 268.6 335.4 156.4 65.7 | 86.0 | 67.0 | 44.3 Z-159BX 18.5 159 1.808 EN 10270-1 268.6 295.12 136.12 68.8 | 83.1 | 72.5 | 50.9 Z-162P-01X 20 202 1.961 EN 10270-1 341.5 362.09 160.09 73.1 | 90.2 | 74.2 | 55.0 Z-162PX 20 194 2.06 EN 10270-1 341.5 346.4 152.4 74.3 | 89.0 | 76.0 | 57.7 Z-174CX 23.2 228 2.162 EN 10270-1 430.1 412.87 184.87 76.3 | 89.9 | 79.1 | 60.0 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 78.1 | 85.7 | 81.9 | 66.6 Z-162EX 15 213 2.621 EN 10270-1 324.5 325.64 112.64 81.5 | 86.2 | 84.1 | 74.2 Z-162DX 15 193 2.912 EN 10270-1 324.5 294.05 101.05 81.8 | 83.3 | 79.2 | 82.8 Z-177EX 19.2 273 3.354 EN 10270-1 510 411.49 138.49 90.7 | 90.8 | 86.5 | 94.9 Z-162U-46X 18 231.5 3.505 EN 10270-1 452.6 348.14 116.64 100.0 | 100.0 | 100.0 | 100.0 Z-177DX 19.2 247 3.739 EN 10270-1 510 371.24 124.24 93.2 | 93.7 | 91.3 | 94.5 Z-162U-45X 18 207.5 3.96 EN 10270-1 452.6 310.76 103.26 93.1 | 96.5 | 94.3 | 88.5 Z-177CX 19.2 221 4.223 EN 10270-1 510 330.99 109.99 89.8 | 94.3 | 91.5 | 83.7 Z-162U-44X 18 183.5 4.549 EN 10270-1 452.6 273.38 89.88 86.2 | 93.1 | 88.5 | 77.1 Z-177BX 19.2 196 4.852 EN 10270-1 510 291.74 95.74 83.0 | 90.7 | 85.4 | 72.8 Z-162U-43X 18 162.5 5.23 EN 10270-1 452.6 240.68 78.18 80.2 | 90.1 | 83.5 | 67.0 Z-177AX 19.2 174 5.579 EN 10270-1 510 257.27 83.27 77.0 | 87.6 | 80.1 | 63.4 Z-177UX 18 237 9.591 EN 10270-1 739.6 306.63 69.63 63.5 | 93.7 | 60.4 | 36.5 Z-177TX 18 165 14.42 EN 10270-1 739.6 211.32 46.32 53.2 | 84.9 | 50.5 | 24.3 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring Z-162U-46X Country of origin: DE, German; Extension Spring Z-162U-46X Product image - Extension Springs Z-162U-46X QR-Code: Extension Spring Z-162U-46X
