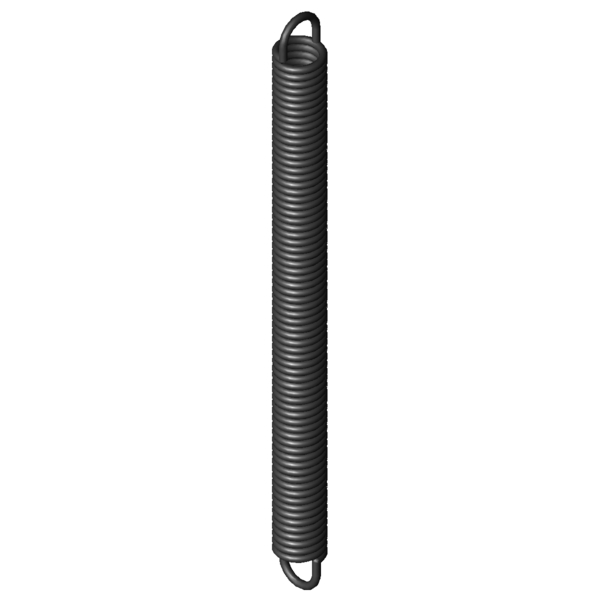

Home » Products » Extension Springs » z-327x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° Scaled prices - Extension Spring Z-327X Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 39.3200 EUR 37 39.3200 EUR 75 39.3200 EUR 125 39.3200 EUR 175 39.3200 EUR 250 39.3200 EUR 350 39.3200 EUR Extension Spring Buy Product image Extension Spring Z-327X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-327X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 490 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 445.73 mm length of unstressed spring body Ln 728.29 mm maximum spring length, inner loop to inner loop sn 238.29 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.13 mm distance of inner edge of loop from the spring body R 6.012 N/mm Spring rate F0 200 N initial tension Fntol 101.46 N (+/-) tolerance of maximum spring force L0tol 7.35 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 45 degree (+/-) tolerance of loop position Weight 1865.8648 g weight of one spring Price group ###BG - price group Technical drawing Extension Spring Datasheet Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° force-path-calculation Extension Spring Z-327X Inquiry formular Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° Inquiry formular Extension Spring Z-327X Similar extension springs to Extension Spring Z-327X Spring steel Ø 6.3 x 40 x 490 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-327X EN 10270-1 6.3 40 490 1632 728.29 238.29 6.012 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-253X 40 403 2.129 EN 10270-1 873.5 778.05 375.05 59.9 | 87.2 | 58.5 | 34.0 Z-252X 40 363 2.405 EN 10270-1 873.5 695.04 332.04 61.8 | 84.5 | 62.6 | 38.4 Z-320X 50 506 2.757 EN 10270-1 1331 945.49 439.49 68.1 | 92.3 | 67.9 | 44.2 Z-251X 40 323 2.763 EN 10270-1 873.5 612.02 289.02 64.6 | 81.8 | 68.0 | 44.1 Z-319X 50 456 3.114 EN 10270-1 1331 845.08 389.08 70.8 | 91.0 | 71.4 | 49.9 Z-250X 40 288 3.177 EN 10270-1 873.5 539.38 251.38 68.1 | 79.4 | 74.2 | 50.7 Z-290X 40 437 3.255 EN 10270-1 1134 748.61 311.61 72.8 | 92.2 | 73.0 | 53.1 Z-318X 50 406 3.578 EN 10270-1 1331 744.67 338.67 73.7 | 87.6 | 76.0 | 57.4 Z-289X 40 392 3.676 EN 10270-1 1134 667.87 275.87 75.7 | 89.1 | 77.9 | 60.0 Z-288X 40 348 4.224 EN 10270-1 1134 588.13 240.13 79.8 | 86.1 | 84.4 | 69.0 Z-357X 50 554 4.411 EN 10270-1 1763 908.47 354.47 79.6 | 86.1 | 79.9 | 72.6 Z-287X 40 310 4.856 EN 10270-1 1134 518.85 208.85 80.5 | 83.5 | 78.6 | 79.3 Z-356X 50 498 4.982 EN 10270-1 1763 811.81 313.81 85.2 | 89.5 | 84.3 | 82.0 Z-355X 50 442 5.724 EN 10270-1 1763 715.16 273.16 90.3 | 86.7 | 89.9 | 94.2 Z-327X 40 490 6.012 EN 10270-1 1632 728.29 238.29 100.0 | 100.0 | 100.0 | 100.0 Z-326X 40 440 6.791 EN 10270-1 1632 650.96 210.96 93.1 | 96.6 | 94.3 | 88.5 Z-325X 40 390 7.801 EN 10270-1 1632 573.63 183.63 86.3 | 93.2 | 88.5 | 77.1 Z-324X 40 346 8.969 EN 10270-1 1632 505.71 159.71 80.2 | 90.2 | 83.5 | 67.0 Z-386X 50 557 9.121 EN 10270-1 2515 799.95 242.95 76.6 | 82.2 | 81.5 | 66.2 Z-323X 40 308 10.29 EN 10270-1 1632 447.22 139.22 75.1 | 87.6 | 79.2 | 58.4 Z-385X 50 493 10.479 EN 10270-1 2515 704.47 211.47 73.5 | 86.0 | 76.8 | 57.6 Z-384X 50 437 12.048 EN 10270-1 2515 620.93 183.93 67.9 | 82.6 | 71.0 | 50.1 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-327X Country of origin: DE, German; Extension Spring Z-327X Product image - Extension Springs Z-327X QR-Code: Extension Spring Z-327X
