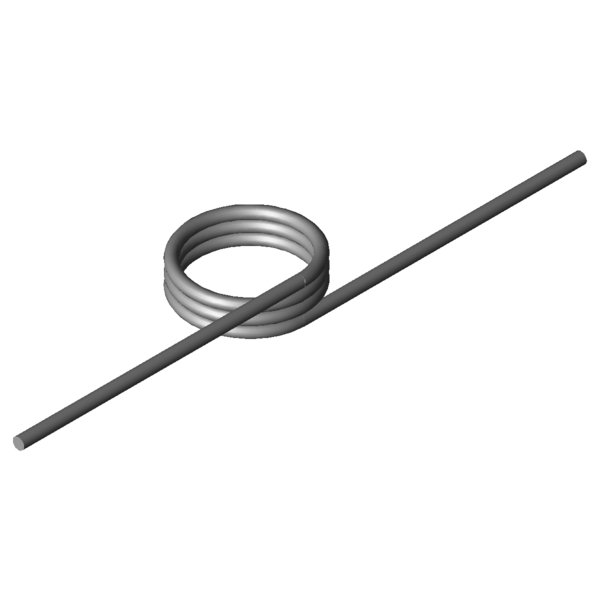

Home » Products » Torsion springs » t-17034l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° Scaled prices - Torsion spring T-17034L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-17034L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-17034L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.2 mm Wire diameter Di 27 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 12.8 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 958.73 Nmm (+/-) Tolerance maximum torque Mn 2964.79 Nmm maximum torque alphan 50.78 degree maximum rotational angle nt 3 pc. total number of coils Ddmax 23.5 mm maximum possible mandrel diameter Ddmin 18 mm Min. possible mandrel diameter Ditol 0.6 mm (+/-) tolerance of inner coil diameter Weight 28.1905 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° force-path-calculation Torsion spring T-17034L Inquiry formular Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° Inquiry formular Torsion spring T-17034L Similar torsion springs to Torsion spring T-17034L: Stainless steel Ø 3.2 x 27 x 80 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19183L 23 10 853.09 105.72 1.4310 42.5 | 75.3 | 38.4 | 13.8 T-19179L 23 8 853.09 79.27 1.4310 45.0 | 70.1 | 46.4 | 18.4 T-16834L 23.5 9 1115.14 66.63 1.4310 53.8 | 75.9 | 56.9 | 28.7 T-16838L 23.5 18 1115.14 155.46 1.4310 41.2 | 76.2 | 35.1 | 12.3 T-16924L 19.5 11.2 2014.76 43.47 1.4310 79.5 | 82.4 | 76.8 | 79.4 T-16934L 24 11.2 2052.94 53.23 1.4310 78.8 | 88.0 | 82.3 | 66.1 T-16930L 24 8.4 2052.94 35.49 1.4310 83.1 | 80.7 | 69.6 | 99.1 T-19344L 21 15 2533.79 62.8 1.4310 79.3 | 85.6 | 83.2 | 69.1 T-19340L 21 9 2533.79 29.83 1.4310 73.8 | 80.6 | 72.1 | 68.7 T-19360L 26 9 2582.84 36.72 1.4310 83.2 | 86.8 | 79.7 | 83.0 T-17014L 17 12.8 2827.78 32.39 1.4310 78.0 | 87.7 | 79.6 | 66.9 T-17024L 22 12.8 2909.76 41.58 1.4310 89.1 | 93.8 | 90.0 | 83.4 T-17020L 22 9.6 2909.76 27.72 1.4310 72.5 | 85.5 | 76.4 | 55.6 T-17034L 27 12.8 2964.79 50.78 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19420L 17.4 10.8 4113.81 20.41 1.4310 54.8 | 79.2 | 56.1 | 29.0 T-19440L 22.4 10.8 4240.2 26.01 1.4310 60.6 | 85.4 | 60.6 | 35.8 T-19460L 27.4 10.8 4326.15 31.69 1.4310 66.3 | 90.6 | 65.5 | 42.8 T-19500L 17.5 12 5236.92 18.35 1.4310 48.8 | 79.5 | 46.4 | 20.5 T-19520L 22.5 12 5673.53 23.34 1.4310 52.9 | 85.7 | 49.1 | 24.0 T-19540L 27.5 12 5798.12 28.34 1.4310 57.6 | 90.6 | 53.5 | 28.5 T-19560L 32.5 12 5888.83 33.34 1.4310 58.9 | 85.6 | 58.0 | 33.1 T-19700L 20.5 13.5 7210.54 17.43 1.4310 44.2 | 80.6 | 37.7 | 14.1 T-19709L 25.5 13.5 7413.47 21.5 1.4310 48.3 | 86.8 | 41.2 | 16.9 T-19713L 25.5 18 7413.47 32.25 1.4310 52.0 | 78.9 | 51.8 | 25.4 T-19718L 30.5 13.5 7558.94 25.58 1.4310 49.8 | 84.8 | 44.8 | 19.8 T-19722L 30.5 18 7558.94 38.37 1.4310 54.6 | 76.9 | 57.4 | 29.6 T-19727L 35.5 13.5 7668.33 29.65 1.4310 50.6 | 80.7 | 48.5 | 22.6 T-19801L 20 15 9706.06 15.39 1.4310 38.1 | 74.5 | 30.4 | 9.3 T-19815L 28 15 10155.28 21.26 1.4310 43.2 | 81.9 | 35.5 | 12.2 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-17034L Country of origin: DE, German; Torsion spring T-17034L Product image - Torsion springs T-17034L QR-Code: Torsion spring T-17034L
