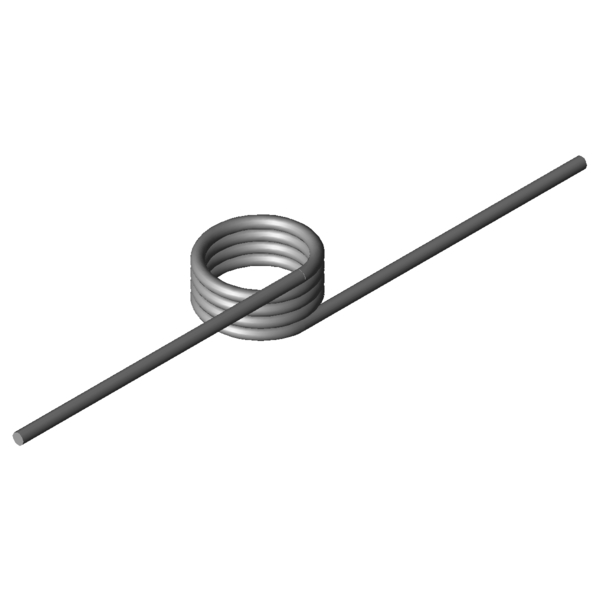

Home » Products » Torsion springs » t-19344l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° Scaled prices - Torsion spring T-19344L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19344L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19344L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3 mm Wire diameter Di 21 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 15 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 800.77 Nmm (+/-) Tolerance maximum torque Mn 2533.79 Nmm maximum torque alphan 62.8 degree maximum rotational angle nt 4 pc. total number of coils Ddmax 18.9 mm maximum possible mandrel diameter Ddmin 16.8 mm Min. possible mandrel diameter Ditol 0.5 mm (+/-) tolerance of inner coil diameter Weight 25.722 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° force-path-calculation Torsion spring T-19344L Inquiry formular Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° Inquiry formular Torsion spring T-19344L Similar torsion springs to Torsion spring T-19344L: Stainless steel Ø 3 x 21 x 80 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18944L 20.5 9 591.67 99.65 1.4310 43.5 | 72.5 | 43.2 | 14.7 T-19158L 18 10 838.31 83.13 1.4310 50.8 | 73.0 | 54.3 | 25.0 T-19183L 23 10 853.09 105.72 1.4310 47.1 | 74.9 | 46.5 | 20.0 T-16818L 15.5 18 1076.95 103.49 1.4310 51.6 | 77.4 | 51.6 | 25.8 T-16828L 18.5 18 1094.7 122.98 1.4310 50.4 | 82.1 | 47.1 | 22.1 T-16824L 18.5 9 1094.7 52.7 1.4310 63.1 | 74.4 | 63.6 | 51.5 T-16838L 23.5 18 1115.14 155.46 1.4310 47.5 | 82.6 | 42.2 | 17.8 T-19244L 17.5 20 1524.2 108.35 1.4310 58.2 | 80.6 | 59.1 | 34.9 T-19264L 22.5 20 1558.44 138.43 1.4310 55.1 | 83.9 | 53.4 | 27.9 T-16914L 15.5 11.2 1965.24 34.79 1.4310 72.8 | 80.6 | 66.5 | 71.4 T-16924L 19.5 11.2 2014.76 43.47 1.4310 82.8 | 87.0 | 74.4 | 87.1 T-16920L 19.5 8.4 2014.76 28.98 1.4310 67.2 | 80.7 | 62.8 | 58.0 T-16934L 24 11.2 2052.94 53.23 1.4310 87.9 | 85.2 | 82.9 | 95.6 T-19344L 21 15 2533.79 62.8 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-17014L 17 12.8 2827.78 32.39 1.4310 67.8 | 86.7 | 70.6 | 46.2 T-17024L 22 12.8 2909.76 41.58 1.4310 75.3 | 91.5 | 76.6 | 57.7 T-17020L 22 9.6 2909.76 27.72 1.4310 62.8 | 84.4 | 65.6 | 38.4 T-17034L 27 12.8 2964.79 50.78 1.4310 79.3 | 85.6 | 83.2 | 69.1 T-19420L 17.4 10.8 4113.81 20.41 1.4310 48.8 | 79.4 | 47.0 | 20.0 T-19440L 22.4 10.8 4240.2 26.01 1.4310 52.8 | 83.0 | 50.6 | 24.7 T-19500L 17.5 12 5236.92 18.35 1.4310 44.1 | 79.4 | 38.8 | 14.1 T-19520L 22.5 12 5673.53 23.34 1.4310 46.8 | 82.8 | 40.9 | 16.6 T-19540L 27.5 12 5798.12 28.34 1.4310 47.1 | 77.1 | 44.4 | 19.7 T-19700L 20.5 13.5 7210.54 17.43 1.4310 42.0 | 84.8 | 31.4 | 9.8 T-19704L 20.5 18 7210.54 26.14 1.4310 45.2 | 82.5 | 38.4 | 14.6 T-19709L 25.5 13.5 7413.47 21.5 1.4310 41.9 | 79.7 | 34.2 | 11.7 T-19713L 25.5 18 7413.47 32.25 1.4310 45.9 | 77.5 | 42.8 | 17.6 T-19801L 20 15 9706.06 15.39 1.4310 38.9 | 85.1 | 25.3 | 6.4 T-19805L 20 20 9706.06 23.09 1.4310 39.3 | 76.7 | 31.4 | 9.6 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-19344L Country of origin: DE, German; Torsion spring T-19344L Product image - Torsion springs T-19344L QR-Code: Torsion spring T-19344L
