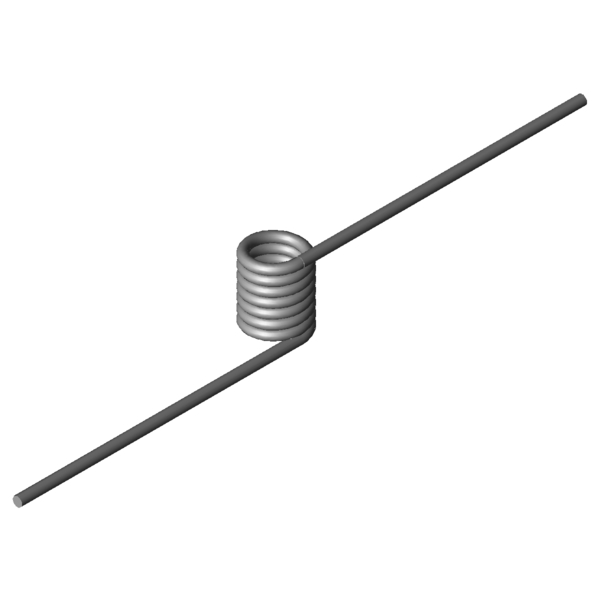

Home » Products » Torsion springs » t-19204r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Scaled prices - Torsion spring T-19204R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19204R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19204R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 10 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 20 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 512.5 Nmm (+/-) Tolerance maximum torque Mn 1422.19 Nmm maximum torque alphan 63.29 degree maximum rotational angle nt 7 pc. total number of coils Ddmax 9 mm maximum possible mandrel diameter Ddmin 8 mm Min. possible mandrel diameter Ditol 0.27 mm (+/-) tolerance of inner coil diameter Weight 16.4422 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° force-path-calculation Torsion spring T-19204R Inquiry formular Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Inquiry formular Torsion spring T-19204R Similar torsion springs to Torsion spring T-19204R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16720R 10.4 7 285.09 69.43 1.4310 45.4 | 62.4 | 55.6 | 18.3 T-16716R 10.4 5.6 285.09 52.07 1.4310 45.2 | 60.1 | 51.2 | 24.4 T-18808R 8.9 8 429.24 54.6 1.4310 52.5 | 64.3 | 58.2 | 35.0 T-18804R 8.9 6.4 429.24 40.93 1.4310 51.9 | 61.7 | 47.4 | 46.7 T-18833R 11.9 8 442.58 72.29 1.4310 49.8 | 62.7 | 59.3 | 27.2 T-18908R 10 9 554.97 49.46 1.4310 60.3 | 72.3 | 58.6 | 49.9 T-18904R 10 7.2 554.97 37.1 1.4310 61.6 | 69.3 | 48.8 | 66.6 T-18900R 10 5.4 554.97 24.73 1.4310 68.4 | 66.3 | 39.0 | 99.9 T-19108R 11 10 798.72 51.55 1.4310 70.5 | 73.6 | 68.8 | 69.0 T-19104R 11 8 798.72 38.6 1.4310 73.7 | 70.3 | 58.6 | 92.1 T-19100R 11 6 798.72 25.73 1.4310 62.6 | 67.0 | 48.4 | 72.4 T-16808R 11.5 18 1041.37 77.52 1.4310 75.4 | 89.0 | 77.4 | 59.8 T-16804R 11.5 9 1041.37 33.22 1.4310 69.5 | 74.0 | 62.9 | 71.7 T-16818R 15.5 18 1076.95 103.49 1.4310 65.4 | 81.5 | 68.4 | 46.3 T-19204R 10 20 1422.19 63.29 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19224R 13.5 20 1481.57 84.27 1.4310 85.0 | 91.4 | 85.5 | 78.2 T-19244R 17.5 20 1524.2 108.35 1.4310 74.7 | 85.7 | 75.9 | 62.6 T-16908R 11.5 22.4 1888.38 60.96 1.4310 82.3 | 88.5 | 85.8 | 72.5 T-16904R 11.5 11.2 1888.38 26.12 1.4310 55.6 | 77.4 | 58.3 | 31.1 T-16900R 11.5 8.4 1888.38 17.42 1.4310 48.3 | 72.7 | 51.4 | 20.7 T-16918R 15.5 22.4 1965.24 81.18 1.4310 83.0 | 81.0 | 75.2 | 92.8 T-19304R 12 24 2364.22 60.86 1.4310 73.1 | 83.3 | 78.2 | 57.8 T-19300R 12 9 2364.22 17.35 1.4310 43.6 | 70.6 | 43.8 | 16.5 T-19324R 16 24 2459.2 80.13 1.4310 72.7 | 76.4 | 68.4 | 73.2 T-17008R 12.5 25.6 2709.97 56.3 1.4310 65.4 | 78.8 | 70.7 | 46.7 T-17004R 12.5 12.8 2709.97 24.13 1.4310 46.5 | 74.0 | 45.3 | 20.0 T-17000R 12.5 9.6 2709.97 16.09 1.4310 40.3 | 68.7 | 39.0 | 13.3 T-19404R 12.4 28.8 3909.65 51.8 1.4310 54.0 | 73.2 | 59.1 | 29.8 T-19400R 12.4 10.8 3909.65 14.81 1.4310 35.5 | 68.0 | 29.9 | 8.5 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-19204R Country of origin: DE, German; Torsion spring T-19204R Product image - Torsion springs T-19204R QR-Code: Torsion spring T-19204R
