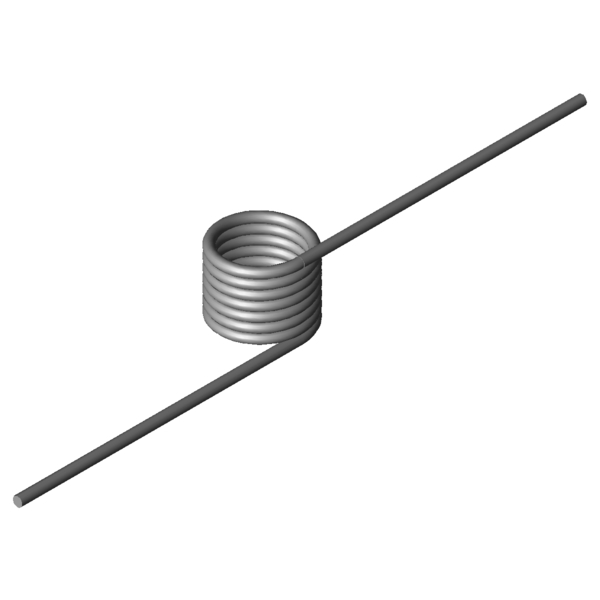

Home » Products » Torsion springs » t-19244r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° Scaled prices - Torsion spring T-19244R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19244R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19244R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 17.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 20 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 405.17 Nmm (+/-) Tolerance maximum torque Mn 1524.2 Nmm maximum torque alphan 108.35 degree maximum rotational angle nt 7 pc. total number of coils Ddmax 15.7 mm maximum possible mandrel diameter Ddmin 14 mm Min. possible mandrel diameter Ditol 0.43 mm (+/-) tolerance of inner coil diameter Weight 22.8236 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° force-path-calculation Torsion spring T-19244R Inquiry formular Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° Inquiry formular Torsion spring T-19244R Similar torsion springs to Torsion spring T-19244R: Stainless steel Ø 2.5 x 17.5 x 75 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19158R 18 10 838.31 83.13 1.4310 71.1 | 75.7 | 65.9 | 71.7 T-16808R 11.5 18 1041.37 77.52 1.4310 82.4 | 81.9 | 69.9 | 95.5 T-16818R 15.5 18 1076.95 103.49 1.4310 82.2 | 89.5 | 83.1 | 74.0 T-16828R 18.5 18 1094.7 122.98 1.4310 78.3 | 91.5 | 80.0 | 63.3 T-16838R 23.5 18 1115.14 155.46 1.4310 69.1 | 84.8 | 71.4 | 51.0 T-19204R 10 20 1422.19 63.29 1.4310 74.7 | 85.7 | 75.9 | 62.6 T-19224R 13.5 20 1481.57 84.27 1.4310 86.6 | 92.4 | 87.5 | 80.0 T-19244R 17.5 20 1524.2 108.35 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19264R 22.5 20 1558.44 138.43 1.4310 86.9 | 92.6 | 88.0 | 80.0 T-16908R 11.5 22.4 1888.38 60.96 1.4310 65.1 | 81.4 | 68.5 | 45.4 T-16918R 15.5 22.4 1965.24 81.18 1.4310 74.5 | 89.0 | 76.2 | 58.1 T-16914R 15.5 11.2 1965.24 34.79 1.4310 52.6 | 78.0 | 54.8 | 24.9 T-16928R 19.5 22.4 2014.76 101.42 1.4310 81.6 | 89.4 | 84.6 | 70.8 T-16924R 19.5 11.2 2014.76 43.47 1.4310 55.5 | 78.3 | 57.9 | 30.4 T-16938R 24 22.4 2052.94 124.2 1.4310 83.2 | 83.8 | 80.7 | 85.1 T-19304R 12 24 2364.22 60.86 1.4310 58.3 | 78.4 | 60.3 | 36.2 T-19324R 16 24 2459.2 80.13 1.4310 66.6 | 86.0 | 68.0 | 45.8 T-19344R 21 15 2533.79 62.8 1.4310 58.2 | 80.6 | 59.1 | 34.9 T-17008R 12.5 25.6 2709.97 56.3 1.4310 53.1 | 75.9 | 54.1 | 29.2 T-17018R 17 25.6 2827.78 75.58 1.4310 61.3 | 84.5 | 61.8 | 37.6 T-17014R 17 12.8 2827.78 32.39 1.4310 45.9 | 79.8 | 41.9 | 16.1 T-17010R 17 9.6 2827.78 21.6 1.4310 40.7 | 74.4 | 36.9 | 10.7 T-17028R 22 25.6 2909.76 97.03 1.4310 65.5 | 78.6 | 71.0 | 46.9 Number of similar metal springs: 22 Customs tariff number: 73202089; Torsion spring T-19244R Country of origin: DE, German; Torsion spring T-19244R Product image - Torsion springs T-19244R QR-Code: Torsion spring T-19244R
