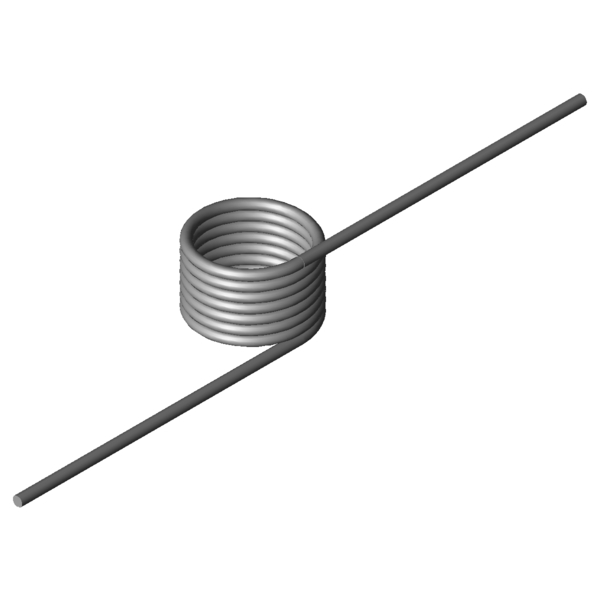

Home » Products » Torsion springs » t-19264r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Scaled prices - Torsion spring T-19264R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19264R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19264R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 22.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 20 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 362.4 Nmm (+/-) Tolerance maximum torque Mn 1558.44 Nmm maximum torque alphan 138.43 degree maximum rotational angle nt 7 pc. total number of coils Ddmax 20.2 mm maximum possible mandrel diameter Ddmin 18 mm Min. possible mandrel diameter Ditol 0.54 mm (+/-) tolerance of inner coil diameter Weight 27.0779 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° force-path-calculation Torsion spring T-19264R Inquiry formular Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Inquiry formular Torsion spring T-19264R Similar torsion springs to Torsion spring T-19264R: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19183R 23 10 853.09 105.72 1.4310 71.1 | 75.9 | 65.6 | 71.7 T-16818R 15.5 18 1076.95 103.49 1.4310 82.4 | 83.0 | 71.9 | 92.4 T-16828R 18.5 18 1094.7 122.98 1.4310 82.0 | 87.4 | 79.5 | 79.1 T-16838R 23.5 18 1115.14 155.46 1.4310 78.6 | 91.9 | 80.3 | 63.7 T-19224R 13.5 20 1481.57 84.27 1.4310 76.2 | 86.7 | 78.0 | 64.0 T-19244R 17.5 20 1524.2 108.35 1.4310 86.9 | 92.6 | 88.0 | 80.0 T-19264R 22.5 20 1558.44 138.43 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16918R 15.5 22.4 1965.24 81.18 1.4310 66.0 | 82.5 | 69.0 | 46.5 T-16928R 19.5 22.4 2014.76 101.42 1.4310 73.5 | 88.4 | 75.3 | 56.7 T-16938R 24 22.4 2052.94 124.2 1.4310 80.6 | 90.8 | 82.8 | 68.1 T-16934R 24 11.2 2052.94 53.23 1.4310 55.4 | 79.7 | 57.2 | 29.2 T-19324R 16 24 2459.2 80.13 1.4310 58.9 | 79.3 | 60.6 | 36.7 T-19344R 21 15 2533.79 62.8 1.4310 55.1 | 83.9 | 53.4 | 27.9 T-19364R 26 24 2582.84 128.39 1.4310 72.3 | 84.4 | 76.5 | 56.0 T-17018R 17 25.6 2827.78 75.58 1.4310 54.1 | 77.3 | 54.9 | 30.1 T-17028R 22 25.6 2909.76 97.03 1.4310 61.3 | 84.7 | 61.8 | 37.5 T-17024R 22 12.8 2909.76 41.58 1.4310 46.0 | 80.0 | 41.8 | 16.1 T-17020R 22 9.6 2909.76 27.72 1.4310 40.7 | 74.6 | 36.8 | 10.7 T-17038R 27 25.6 2964.79 118.48 1.4310 64.6 | 79.9 | 69.1 | 45.0 T-19444R 22.4 28.8 4240.2 91.15 1.4310 51.7 | 79.5 | 51.3 | 24.2 T-19440R 22.4 10.8 4240.2 26.01 1.4310 36.3 | 74.3 | 27.8 | 6.9 T-19520R 22.5 12 5673.53 23.34 1.4310 33.7 | 74.2 | 22.2 | 4.6 Number of similar metal springs: 21 Customs tariff number: 73202089; Torsion spring T-19264R Country of origin: DE, German; Torsion spring T-19264R Product image - Torsion springs T-19264R QR-Code: Torsion spring T-19264R
