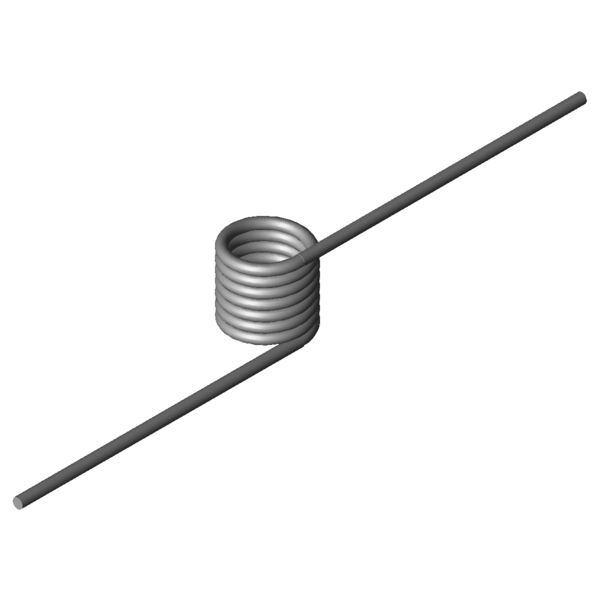

Home » Products » Torsion springs » t-16918r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° Scaled prices - Torsion spring T-16918R Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-16918R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16918R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.8 mm Wire diameter Di 15.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 22.4 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 629.78 Nmm (+/-) Tolerance maximum torque Mn 1965.24 Nmm maximum torque alphan 81.18 degree maximum rotational angle nt 7 pc. total number of coils Ddmax 13.6 mm maximum possible mandrel diameter Ddmin 10 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 27.3011 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° force-path-calculation Torsion spring T-16918R Inquiry formular Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° Inquiry formular Torsion spring T-16918R Similar torsion springs to Torsion spring T-16918R: Stainless steel Ø 2.8 x 15.5 x 80 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18932R 16 9 581.21 78.14 1.4310 53.6 | 67.1 | 62.9 | 30.7 T-19133R 15 10 825.31 69.54 1.4310 61.3 | 70.9 | 63.8 | 49.0 T-16808R 11.5 18 1041.37 77.52 1.4310 69.3 | 78.3 | 74.2 | 55.5 T-16818R 15.5 18 1076.95 103.49 1.4310 65.5 | 86.9 | 66.6 | 43.0 T-16814R 15.5 9 1076.95 44.35 1.4310 76.0 | 73.5 | 54.7 | 99.7 T-16828R 18.5 18 1094.7 122.98 1.4310 59.7 | 81.5 | 60.9 | 36.8 T-19204R 10 20 1422.19 63.29 1.4310 83.0 | 81.0 | 75.2 | 92.8 T-19224R 13.5 20 1481.57 84.27 1.4310 82.3 | 88.6 | 85.9 | 72.6 T-19244R 17.5 20 1524.2 108.35 1.4310 74.5 | 89.0 | 76.2 | 58.1 T-19264R 22.5 20 1558.44 138.43 1.4310 66.0 | 82.5 | 69.0 | 46.5 T-16908R 11.5 22.4 1888.38 60.96 1.4310 85.0 | 91.4 | 85.6 | 78.1 T-16918R 15.5 22.4 1965.24 81.18 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16928R 19.5 22.4 2014.76 101.42 1.4310 88.0 | 93.2 | 88.8 | 82.1 T-16938R 24 22.4 2052.94 124.2 1.4310 79.0 | 88.2 | 80.5 | 68.3 T-19304R 12 24 2364.22 60.86 1.4310 76.5 | 88.0 | 79.0 | 62.3 T-19324R 16 24 2459.2 80.13 1.4310 87.6 | 94.5 | 89.3 | 78.9 T-19320R 16 9 2459.2 22.93 1.4310 51.1 | 76.8 | 54.1 | 22.6 T-17008R 12.5 25.6 2709.97 56.3 1.4310 68.8 | 85.2 | 70.9 | 50.3 T-17004R 12.5 12.8 2709.97 24.13 1.4310 49.3 | 75.1 | 51.1 | 21.6 T-17018R 17 25.6 2827.78 75.58 1.4310 78.2 | 88.7 | 81.3 | 64.7 T-17014R 17 12.8 2827.78 32.39 1.4310 53.7 | 78.6 | 54.7 | 27.7 T-17028R 22 25.6 2909.76 97.03 1.4310 79.4 | 81.8 | 75.6 | 80.7 T-19404R 12.4 28.8 3909.65 51.8 1.4310 55.9 | 78.5 | 57.0 | 32.1 T-19424R 17.4 28.8 4113.81 71.47 1.4310 63.8 | 81.5 | 67.9 | 42.1 T-19500R 17.5 12 5236.92 18.35 1.4310 36.4 | 70.7 | 30.1 | 8.5 T-19504R 17.5 32 5491.74 64.13 1.4310 54.0 | 76.2 | 57.4 | 28.3 T-19704R 20.5 18 7210.54 26.14 1.4310 37.1 | 72.7 | 29.7 | 8.8 Number of similar metal springs: 26 Customs tariff number: 73202089; Torsion spring T-16918R Country of origin: DE, German; Torsion spring T-16918R Product image - Torsion springs T-16918R QR-Code: Torsion spring T-16918R
