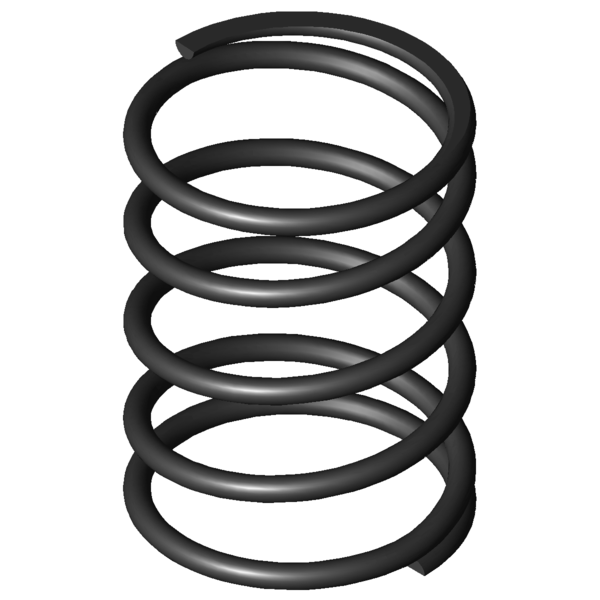

Home » Products » Compression springs » d-364e-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm Scaled prices - Compression spring D-364E-10 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9376 EUR 175 2.9180 EUR 250 2.8813 EUR 350 2.8095 EUR Compression spring Buy Product image Compression spring D-364E-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364E-10 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 64.5 mm Mean coil diameter De 70 mm Outer coil diameter Dd 57.6 mm maximum diameter of mandrel Dh 71.5 mm minimum diameter of bush L0 95 mm unstressed spring length Lk mm buckling length Fn 584.141 N maximum force in static use Ln 36.15 mm Minimum length in static use sn 58.85 mm Maximum spring deflection in static use Fndyn 554.859 N maximum force in dynamic use Lndyn 39.1 mm Minimum length in dynamic use shdyn 35.2 mm Maximum stroke in dynamic use S 25.571 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 9.926 N/mm Spring rate Weight 209.2994 g weight of one spring Fntol 41.5 N (+/-) tolerance of maximum force in static use Fndtol 41.1 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 3.2 mm (+/-) tolerance of unstressed spring length Price group AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm Metal spring characteristic download pdf file CAD data Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm force-path-calculation Compression spring D-364E-10 Inquiry formular Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm Inquiry formular Compression spring D-364E-10 Similar compression springs to Compression spring D-364E-10 Spring steel Ø 5.5 x 64.5 x 95 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364E-10 EN 10270-1 5.5 70 95 584.141 36.15 58.85 3.5 9.926 100.0 | 100.0 | 100.0 | 100.0 VD-364E-10 1.4310 5.5 70 95 501.29 36.2 58.8 3.5 8.525 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339J-10 68 91 4.662 EN 10270-1 279.555 31.03 59.97 70.5 | 91.6 | 73.0 | 47.0 D-314 54 99 5.961 EN 10270-1 431.102 26.68 72.32 73.2 | 81.9 | 77.6 | 60.1 D-313W 54 90 5.961 EN 10270-1 377.452 26.68 63.32 73.5 | 81.5 | 78.8 | 60.1 D-364R-56 90 95 6.365 EN 10270-1 341.966 41.27 53.73 76.3 | 89.8 | 74.9 | 64.1 D-364R-31 69 88 7.148 EN 10270-1 264.467 51 37 74.2 | 96.5 | 54.1 | 72.0 D-340 68 120 7.275 EN 10270-1 629.924 33.42 86.58 80.9 | 89.1 | 80.4 | 73.3 D-345A 55 100 9.261 EN 10270-1 515.163 44.38 55.63 90.9 | 88.2 | 91.4 | 93.3 D-364E-10 70 95 9.926 EN 10270-1 584.141 36.15 58.85 100.0 | 100.0 | 100.0 | 100.0 D-349A-10 50 95 9.982 EN 10270-1 421.709 52.75 42.25 86.3 | 87.4 | 72.0 | 99.4 D-364E-02 80 80 10.02 EN 10270-1 520.839 28.02 51.98 92.8 | 90.6 | 88.7 | 99.1 D-364R-42 54 92 10.396 EN 10270-1 240.214 68.89 23.11 75.5 | 90.7 | 40.2 | 95.5 D-364R-60 77 102 10.54 EN 10270-1 658.619 39.51 62.49 92.5 | 91.9 | 91.4 | 94.2 D-344A-12 60 80 10.934 EN 10270-1 520.145 32.43 47.57 87.6 | 86.9 | 84.9 | 90.8 D-369C 78.3 110 12.285 EN 10270-1 845.433 41.18 68.82 81.9 | 87.7 | 77.3 | 80.8 D-364F 60 85.4 16.454 EN 10270-1 829.093 35.01 50.39 76.7 | 91.9 | 78.0 | 60.3 D-370 69.3 105 18.338 EN 10270-1 1188.958 40.16 64.84 72.1 | 92.3 | 69.9 | 54.1 D-389F 75 102 22.226 EN 10270-1 1279.828 44.42 57.58 68.2 | 88.3 | 71.7 | 44.7 D-364R-70 61 85 22.673 EN 10270-1 1071.318 37.75 47.25 66.9 | 89.4 | 67.4 | 43.8 D-375A 56.3 94 23.343 EN 10270-1 933.982 53.99 40.01 65.6 | 88.9 | 65.3 | 42.5 D-399A 81 98 30.647 EN 10270-1 1461.959 50.3 47.7 59.0 | 84.0 | 60.5 | 32.4 D-400 71 95 47.68 EN 10270-1 2173.994 49.4 45.6 54.0 | 89.1 | 52.2 | 20.8 D-405A 58 98 60.695 EN 10270-1 1882.881 66.98 31.02 47.0 | 82.8 | 41.9 | 16.4 D-414K 63 111 77.178 EN 10270-1 2768.916 75.12 35.88 44.3 | 78.9 | 41.0 | 12.9 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-364E-10 Country of origin: DE, German; Compression spring D-364E-10 Product image - Compression springs D-364E-10 QR-Code: Compression spring D-364E-10
