Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

Scaled prices - Compression spring D-166O

Quantity	Single price [EUR]
1	4.9000 EUR
2	3.4600 EUR
3	3.3000 EUR
7	1.8900 EUR
17	0.9300 EUR
37	0.5700 EUR
75	0.3900 EUR
125	0.3566 EUR
175	0.3067 EUR
250	0.2817 EUR
350	0.2526 EUR
450	0.1895 EUR

Compression spring Buy

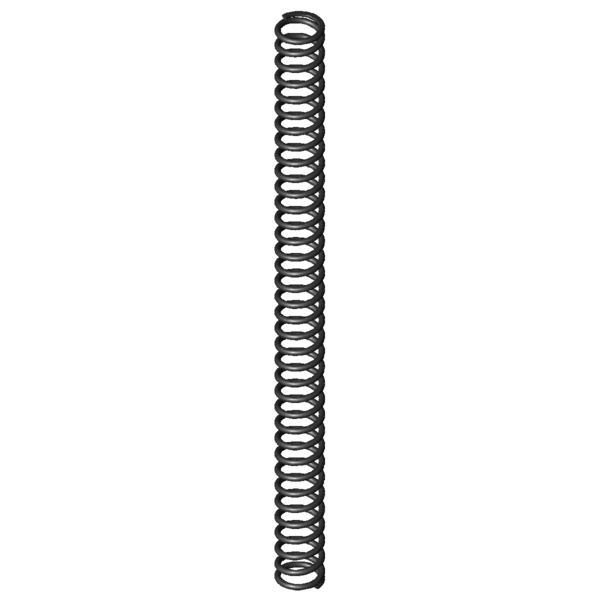

Product image Compression spring D-166O

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-166O

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7	mm	Mean coil diameter
De	8	mm	Outer coil diameter
Dd	5.4	mm	maximum diameter of mandrel
Dh	8.7	mm	minimum diameter of bush
L0	107	mm	unstressed spring length
Lk	101.8	mm	buckling length
Fn	55.541	N	maximum force in static use
Ln	42.49	mm	Minimum length in static use
sn	64.51	mm	Maximum spring deflection in static use
Fndyn	51.224	N	maximum force in dynamic use
Lndyn	47.5	mm	Minimum length in dynamic use
shdyn	21.79	mm	Maximum stroke in dynamic use
S	3.072	mm	pitch of spring
n	34.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.861	N/mm	Spring rate
Weight	4.9832	g	weight of one spring
Fntol	2.99	N	(+/-) tolerance of maximum force in static use
Fndtol	2.95	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	2.51	mm	(+/-) tolerance of unstressed spring length
Price group	E	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

force-path-calculation Compression spring D-166O

Inquiry formular Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

Inquiry formular Compression spring D-166O

Similar compression springs to Compression spring D-166O Spring steel Ø 1 x 7 x 107 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-166O	EN 10270-1	1	8	107	55.541	42.49	64.51	34.5	0.861	100.0 \| 100.0 \| 100.0 \| 100.0
VD-166O	1.4310	1	8	107	47.704	42.49	64.51	34.5	0.739	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-090AA	10.5	117	0.108	EN 10270-1	10.919	15.6	101.4	47.1 \| 75.3 \| 50.2 \| 15.8
D-063L	8.5	60.5	0.131	EN 10270-1	6.866	8.05	52.45	43.0 \| 66.9 \| 46.8 \| 15.2
D-095A	8.63	80.5	0.139	EN 10270-1	8.389	20.28	60.22	49.1 \| 77.0 \| 54.2 \| 16.2
D-095	8.63	80.5	0.169	EN 10270-1	10.776	16.9	63.6	51.9 \| 77.0 \| 59.0 \| 19.7
D-122A	10.8	96.5	0.185	EN 10270-1	13.145	25.62	70.88	53.4 \| 81.4 \| 57.3 \| 21.5
D-122	10.8	96.5	0.226	EN 10270-1	16.951	21.35	75.15	55.3 \| 81.4 \| 58.2 \| 26.2
D-122A-14	10	92.5	0.29	EN 10270-1	20.764	20.82	71.68	59.8 \| 82.1 \| 63.7 \| 33.6
D-127A	8.8	68	0.362	EN 10270-1	15.902	24.1	43.9	56.2 \| 78.2 \| 48.3 \| 42.1
D-115H-04	8	63	0.381	EN 10270-1	17.915	15.99	47.01	57.7 \| 76.3 \| 52.6 \| 44.3
D-127	8.8	68	0.441	EN 10270-1	21.102	20.1	47.9	61.8 \| 78.2 \| 56.1 \| 51.2
D-155A-10	11	114	0.497	EN 10270-1	42.924	27.63	86.38	74.2 \| 88.9 \| 76.0 \| 57.7
D-132A-01	7.1	65	0.566	EN 10270-1	19.938	29.76	35.24	62.5 \| 76.5 \| 45.3 \| 65.7
D-127E-06	8	60.8	0.604	EN 10270-1	24.85	19.68	41.12	67.8 \| 78.9 \| 54.2 \| 70.2
D-166P	8	135	0.683	EN 10270-1	55.956	53.05	81.95	87.1 \| 93.1 \| 89.0 \| 79.3
D-166O	8	107	0.861	EN 10270-1	55.541	42.49	64.51	100.0 \| 100.0 \| 100.0 \| 100.0
D-143M	8	57	0.958	EN 10270-1	32.808	22.74	34.26	75.7 \| 81.1 \| 56.1 \| 89.9
D-166E	8.3	64	1.069	EN 10270-1	35.371	30.91	33.09	74.5 \| 85.4 \| 57.5 \| 80.5
D-180Q-05	11	101	1.213	EN 10270-1	75.463	38.8	62.2	79.8 \| 83.5 \| 85.0 \| 71.0
D-166N	8	69.7	1.32	EN 10270-1	54.513	28.4	41.3	78.2 \| 88.4 \| 81.1 \| 65.2
D-180-07	8.3	76	1.332	EN 10270-1	47.127	40.62	35.38	73.5 \| 86.1 \| 69.8 \| 64.6
D-180-06	8.3	64	1.631	EN 10270-1	49.622	33.58	30.42	67.8 \| 82.4 \| 68.2 \| 52.8
D-180-14	9	74	1.635	EN 10270-1	73.014	29.35	44.65	69.4 \| 83.0 \| 72.6 \| 52.7
D-173CK	6.7	81	1.865	EN 10270-1	76.865	39.78	41.22	66.9 \| 86.5 \| 68.1 \| 46.2
D-200	9.25	69	2.626	EN 10270-1	103.064	29.75	39.25	55.7 \| 77.0 \| 57.4 \| 32.8
D-200E	8.05	57	3.516	EN 10270-1	78.447	34.69	22.31	51.6 \| 77.5 \| 52.7 \| 24.5
D-207D-08	8.6	76	3.745	EN 10270-1	106.819	47.48	28.52	49.9 \| 78.5 \| 48.1 \| 23.0
D-207D-07	8.6	64	4.462	EN 10270-1	105.767	40.3	23.7	46.2 \| 74.8 \| 44.6 \| 19.3
D-232A-08	9	76	6.102	EN 10270-1	145.806	52.11	23.89	41.9 \| 74.1 \| 37.6 \| 14.1
D-234B-08	9.2	76	10.557	EN 10270-1	229.702	54.24	21.76	36.1 \| 71.2 \| 29.0 \| 8.2

Number of similar metal springs: 28
