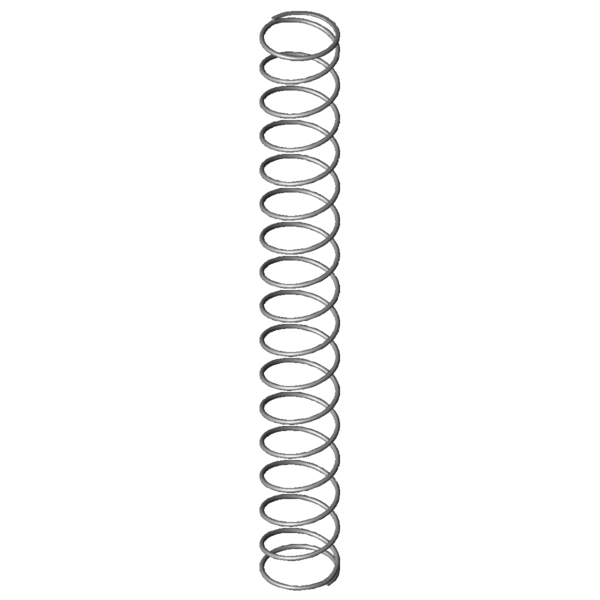

Home » Products » Compression springs » vd-339z Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm Scaled prices - Compression spring VD-339Z Quantity Single price [EUR] 1 17.9400 EUR 2 14.2900 EUR 3 10.3300 EUR 7 8.7500 EUR 17 7.3700 EUR 37 6.4800 EUR 75 6.4100 EUR 125 6.4100 EUR 175 6.4100 EUR 250 6.4100 EUR 350 6.4100 EUR Compression spring Buy Product image Compression spring VD-339Z Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339Z Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 85 mm Outer coil diameter Dd 73.1 mm maximum diameter of mandrel Dh 89.2 mm minimum diameter of bush L0 691 mm unstressed spring length Lk 577.71 mm buckling length Fn 390.027 N maximum force in static use Ln 125.01 mm Minimum length in static use sn 565.99 mm Maximum spring deflection in static use Fndyn 377.107 N maximum force in dynamic use Lndyn 143.76 mm Minimum length in dynamic use shdyn 133.12 mm Maximum stroke in dynamic use S 44.258 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.689 N/mm Spring rate Weight 682.6345 g weight of one spring Fntol 25.58 N (+/-) tolerance of maximum force in static use Fndtol 25.36 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 23.39 mm (+/-) tolerance of unstressed spring length Price group #AW - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm force-path-calculation Compression spring VD-339Z Inquiry formular Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm Inquiry formular Compression spring VD-339Z Similar compression springs to Compression spring VD-339Z Stainless steel Ø 5 x 80 x 691 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339Z 1.4310 5 85 691 390.027 125.01 565.99 15.5 0.689 100.0 | 100.0 | 100.0 | 100.0 D-339Z EN 10270-1 5 85 691 454.103 125.01 565.99 15.5 0.802 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313V 70 613 0.503 1.4310 257.107 101.52 511.48 78.3 | 83.7 | 78.1 | 72.9 VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 75.6 | 77.9 | 65.3 | 83.8 VD-364R-53 115 725 0.649 1.4310 378.674 141.2 583.8 91.8 | 84.2 | 97.0 | 94.1 VD-339J 75 615 0.661 1.4310 332.691 111.4 503.6 90.7 | 89.1 | 87.1 | 95.9 VD-339Z 85 691 0.689 1.4310 390.027 125.01 565.99 100.0 | 100.0 | 100.0 | 100.0 VD-364E 95 763 0.721 1.4310 449.879 138.64 624.36 91.5 | 90.3 | 88.7 | 95.6 VD-364V 105 798 0.925 1.4310 593.806 155.97 642.03 77.9 | 82.3 | 76.9 | 74.5 VD-344A 68 585 0.972 1.4310 412.591 160.54 424.46 81.3 | 88.2 | 84.8 | 70.9 VD-339Y 85 428 1.124 1.4310 390.717 80.49 347.51 76.4 | 87.3 | 80.6 | 61.3 VD-364D 95 472 1.176 1.4310 449.993 89.23 382.77 72.9 | 82.9 | 77.2 | 58.6 VD-339Z-04 75 430 1.181 1.4310 384.903 104.1 325.91 73.3 | 83.5 | 78.1 | 58.3 VD-344 68 585 1.182 1.4310 533.439 133.78 451.22 74.3 | 88.2 | 76.4 | 58.3 VD-369A 86.3 720 1.197 1.4310 618.824 202.81 517.19 75.4 | 91.3 | 77.2 | 57.6 VD-364J-05 56 605 1.397 1.4310 410.499 311.18 293.82 68.1 | 81.4 | 73.5 | 49.3 VD-369 86.3 720 1.455 1.4310 801.833 169 551 70.5 | 91.3 | 73.0 | 47.4 VD-368A 86.3 490 1.455 1.4310 467.132 169 321 66.8 | 82.9 | 70.1 | 47.4 VD-389E-16 105 500 1.786 1.4310 649.643 136.2 363.8 58.6 | 74.9 | 62.2 | 38.6 VD-394 108 835 1.937 1.4310 1204.054 213.49 621.51 57.3 | 74.7 | 61.7 | 35.6 VD-367A 86.3 365 1.994 1.4310 475.163 126.73 238.27 57.8 | 76.9 | 62.1 | 34.6 VD-368 86.3 490 2.154 1.4310 800.599 118.27 371.73 57.4 | 82.9 | 57.2 | 32.0 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-339Z Country of origin: DE, German; Compression spring VD-339Z Product image - Compression springs VD-339Z QR-Code: Compression spring VD-339Z
