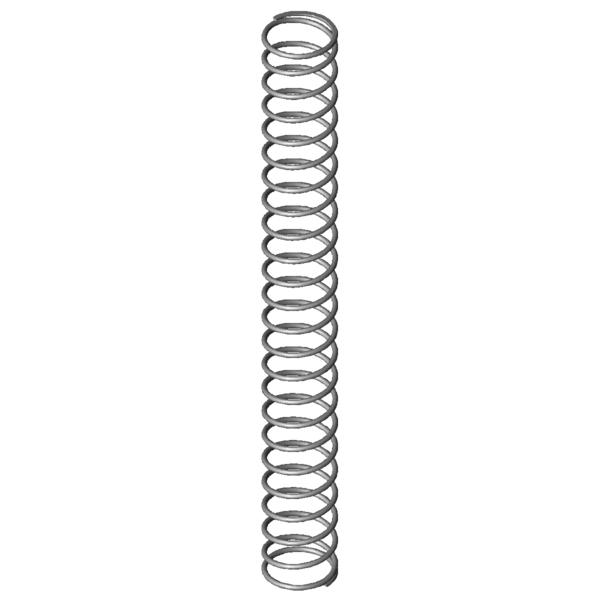

Home » Products » Compression springs » vd-344a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm Scaled prices - Compression spring VD-344A Quantity Single price [EUR] 1 16.3800 EUR 2 13.0500 EUR 3 9.0700 EUR 7 7.2200 EUR 17 5.7200 EUR 37 4.9500 EUR 75 4.9100 EUR 125 4.9100 EUR 175 4.9100 EUR 250 4.9100 EUR 350 4.9100 EUR Compression spring Buy Product image Compression spring VD-344A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-344A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 63 mm Mean coil diameter De 68 mm Outer coil diameter Dd 56.5 mm maximum diameter of mandrel Dh 71 mm minimum diameter of bush L0 585 mm unstressed spring length Lk 503.35 mm buckling length Fn 412.591 N maximum force in static use Ln 160.54 mm Minimum length in static use sn 424.46 mm Maximum spring deflection in static use Fndyn 394.104 N maximum force in dynamic use Lndyn 179.56 mm Minimum length in dynamic use shdyn 160.57 mm Maximum stroke in dynamic use S 25.778 mm pitch of spring n 22.5 pc. number of active coils nt pc. total number of coils R 0.972 N/mm Spring rate Weight 752.6046 g weight of one spring Fntol 26.46 N (+/-) tolerance of maximum force in static use Fndtol 26.13 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 17.01 mm (+/-) tolerance of unstressed spring length Price group #AR - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm Metal spring characteristic download pdf file CAD data Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm force-path-calculation Compression spring VD-344A Inquiry formular Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm Inquiry formular Compression spring VD-344A Similar compression springs to Compression spring VD-344A Stainless steel Ø 5 x 63 x 585 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-344A 1.4310 5 68 585 412.591 160.54 424.46 22.5 0.972 100.0 | 100.0 | 100.0 | 100.0 D-344A EN 10270-1 5 68 585 480.374 160.54 424.46 22.5 1.132 92.9 | 100.0 | 92.9 | 85.9 D-344 EN 10270-1 5 68 585 621.076 133.78 451.22 18.5 1.376 83.6 | 100.0 | 80.3 | 70.6 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289C 55 497 0.426 1.4310 177.398 80.46 416.54 63.7 | 76.6 | 70.6 | 43.8 VD-313V 70 613 0.503 1.4310 257.107 101.52 511.48 71.7 | 90.9 | 72.7 | 51.7 VD-313E 60 516 0.529 1.4310 225.606 89.12 426.88 71.4 | 82.8 | 77.1 | 54.4 VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 74.0 | 87.1 | 75.6 | 59.4 VD-339J 75 615 0.661 1.4310 332.691 111.4 503.6 80.8 | 91.9 | 82.5 | 68.0 VD-339Z 85 691 0.689 1.4310 390.027 125.01 565.99 81.3 | 88.2 | 84.8 | 70.9 VD-318A 54 490 0.796 1.4310 288.238 128.09 361.91 80.2 | 81.1 | 77.6 | 81.9 VD-313U 70 379 0.82 1.4310 257.266 65.32 313.68 77.7 | 80.6 | 68.1 | 84.4 VD-318 54 490 0.969 1.4310 371.241 106.74 383.26 90.3 | 81.1 | 90.1 | 99.7 VD-344A 68 585 0.972 1.4310 412.591 160.54 424.46 100.0 | 100.0 | 100.0 | 100.0 VD-339H 75 380 1.078 1.4310 332.239 71.76 308.24 82.9 | 81.9 | 76.6 | 90.2 VD-339J-12 68 325 1.121 1.4310 266.053 87.68 237.32 67.9 | 91.5 | 68.7 | 43.6 VD-339Z-04 75 430 1.181 1.4310 384.903 104.1 325.91 85.1 | 88.1 | 85.0 | 82.3 VD-344 68 585 1.182 1.4310 533.439 133.78 451.22 89.3 | 100.0 | 85.7 | 82.2 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 79.9 | 89.2 | 68.2 | 82.2 VD-364J-05 56 605 1.397 1.4310 410.499 311.18 293.82 81.3 | 90.0 | 84.4 | 69.6 VD-368A 86.3 490 1.455 1.4310 467.132 169 321 76.5 | 80.6 | 82.0 | 66.8 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 73.1 | 89.2 | 74.6 | 55.6 VD-368 86.3 490 2.154 1.4310 800.599 118.27 371.73 65.1 | 80.6 | 69.6 | 45.1 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 63.0 | 83.7 | 64.2 | 41.1 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 91.7 | 90.0 | 92.4 | 92.8 VD-374A 69.3 500 2.45 1.4310 760.021 189.79 310.21 63.7 | 87.7 | 63.7 | 39.7 VD-374 69.3 500 2.98 1.4310 1018.211 158.29 341.71 60.3 | 87.7 | 60.5 | 32.6 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 88.5 | 86.1 | 93.1 | 86.4 VD-399 88 600 3.784 1.4310 1509.73 201 399 55.1 | 79.1 | 60.7 | 25.7 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-344A Country of origin: DE, German; Compression spring VD-344A Product image - Compression springs VD-344A QR-Code: Compression spring VD-344A
