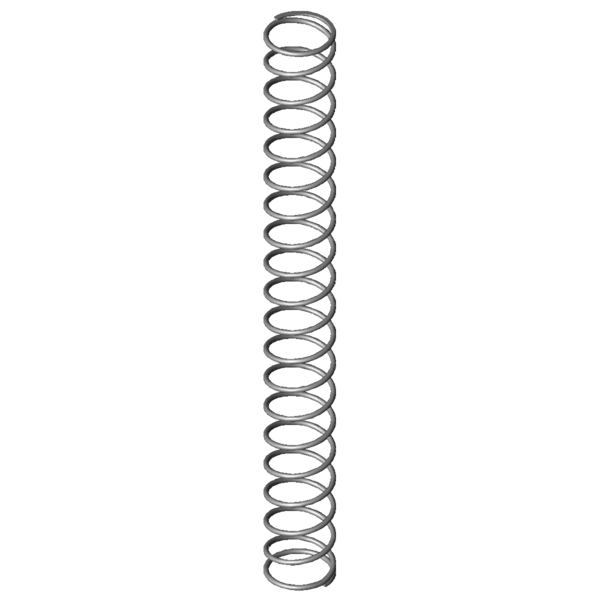

Home » Products » Compression springs » vd-318 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm Scaled prices - Compression spring VD-318 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-318 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-318 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 54 mm Outer coil diameter Dd 44.8 mm maximum diameter of mandrel Dh 56.2 mm minimum diameter of bush L0 490 mm unstressed spring length Lk 429.22 mm buckling length Fn 371.241 N maximum force in static use Ln 106.74 mm Minimum length in static use sn 383.26 mm Maximum spring deflection in static use Fndyn 340.093 N maximum force in dynamic use Lndyn 138.9 mm Minimum length in dynamic use shdyn 64.24 mm Maximum stroke in dynamic use S 26.27 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.969 N/mm Spring rate Weight 319.863 g weight of one spring Fntol 19.92 N (+/-) tolerance of maximum force in static use Fndtol 19.71 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 11.91 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm Metal spring characteristic download pdf file CAD data Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm force-path-calculation Compression spring VD-318 Inquiry formular Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm Inquiry formular Compression spring VD-318 Similar compression springs to Compression spring VD-318 Stainless steel Ø 4 x 50 x 490 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-318 1.4310 4 54 490 371.241 106.74 383.26 18.5 0.969 69.9 | 85.7 | 72.1 | 51.9 D-318A EN 10270-1 4 54 490 335.592 128.09 361.91 22.5 0.927 100.0 | 100.0 | 100.0 | 100.0 D-318 EN 10270-1 4 54 490 432.23 106.74 383.26 18.5 1.128 89.4 | 100.0 | 86.0 | 82.2 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263Z 42 389 0.358 1.4310 116.953 62.14 326.86 56.2 | 73.2 | 58.4 | 36.9 VD-288K 48 443 0.376 1.4310 140.038 70.3 372.7 63.1 | 83.1 | 67.5 | 38.8 VD-289X-24 48 434 0.42 1.4310 146.398 85.78 348.22 64.2 | 84.2 | 65.1 | 43.4 VD-289C 55 497 0.426 1.4310 177.398 80.46 416.54 79.9 | 79.9 | 75.2 | 84.7 VD-313E 60 516 0.529 1.4310 225.606 89.12 426.88 89.1 | 86.6 | 85.6 | 95.1 VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 88.4 | 93.4 | 84.5 | 87.1 VD-293A 43.2 405 0.637 1.4310 192.755 102.48 302.53 70.7 | 80.9 | 65.4 | 65.8 VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 77.8 | 80.3 | 66.0 | 87.2 VD-293 43.2 405 0.775 1.4310 247.668 85.4 319.61 88.4 | 80.9 | 87.1 | 97.3 VD-318A 54 490 0.796 1.4310 288.238 128.09 361.91 76.3 | 85.7 | 80.0 | 63.1 VD-318 54 490 0.969 1.4310 371.241 106.74 383.26 69.9 | 85.7 | 72.1 | 51.9 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 63.4 | 80.5 | 67.2 | 42.5 VD-344 68 585 1.182 1.4310 533.439 133.78 451.22 67.2 | 90.9 | 68.2 | 42.5 VD-329BE 35 450 1.355 1.4310 240.879 272.2 177.8 70.2 | 85.6 | 66.3 | 58.8 VD-364J-05 56 605 1.397 1.4310 410.499 311.18 293.82 59.9 | 83.8 | 60.0 | 36.0 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 80.2 | 89.5 | 83.7 | 67.6 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 70.0 | 80.0 | 74.5 | 55.4 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 64.2 | 87.3 | 64.4 | 41.0 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 60.6 | 87.3 | 60.7 | 33.7 VD-348A 55 280 2.365 1.4310 365.076 125.63 154.38 57.6 | 78.4 | 60.8 | 33.7 VD-374A 69.3 500 2.45 1.4310 760.021 189.79 310.21 58.0 | 79.8 | 61.8 | 32.5 VD-374 69.3 500 2.98 1.4310 1018.211 158.29 341.71 56.0 | 79.8 | 61.4 | 26.7 VD-364J 60 341 3.191 1.4310 713.745 117.33 223.67 51.2 | 77.4 | 51.1 | 25.0 VD-348 55 280 3.5 1.4310 671.563 88.13 191.88 49.7 | 78.4 | 48.0 | 22.8 VD-379A 56.3 365 4.901 1.4310 897.271 181.92 183.08 47.4 | 78.0 | 44.6 | 19.8 VD-379 56.3 365 5.961 1.4310 1270.695 151.82 213.18 45.5 | 78.0 | 42.4 | 16.3 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-318 Country of origin: DE, German; Compression spring VD-318 Product image - Compression springs VD-318 QR-Code: Compression spring VD-318
