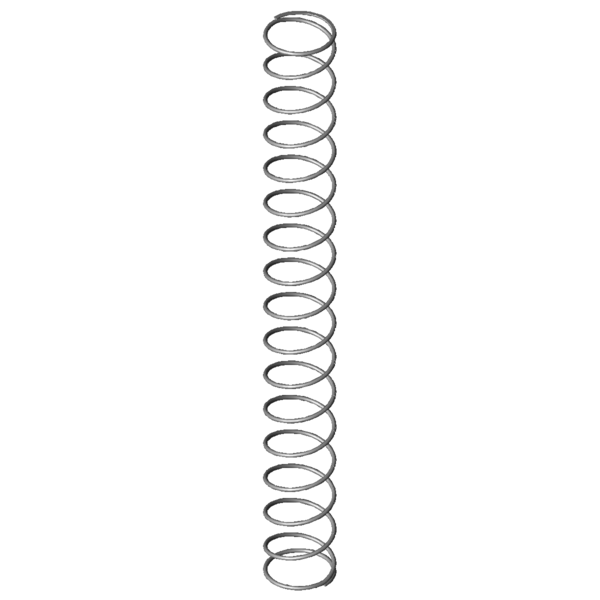

Home » Products » Compression springs » vd-289c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm Scaled prices - Compression spring VD-289C Quantity Single price [EUR] 1 6.4400 EUR 2 4.5400 EUR 3 4.3300 EUR 7 3.5700 EUR 17 2.3000 EUR 37 1.8300 EUR 75 1.7400 EUR Compression spring Buy Product image Compression spring VD-289C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-289C Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 51.8 mm Mean coil diameter De 55 mm Outer coil diameter Dd 47.1 mm maximum diameter of mandrel Dh 58.4 mm minimum diameter of bush L0 497 mm unstressed spring length Lk 432.4 mm buckling length Fn 177.398 N maximum force in static use Ln 80.46 mm Minimum length in static use sn 416.54 mm Maximum spring deflection in static use Fndyn 172.187 N maximum force in dynamic use Lndyn 92.69 mm Minimum length in dynamic use shdyn 108.25 mm Maximum stroke in dynamic use S 31.858 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.426 N/mm Spring rate Weight 181.0456 g weight of one spring Fntol 11.85 N (+/-) tolerance of maximum force in static use Fndtol 11.76 N (+/-) tolerance of maximum dynamic force Detol 1.1 mm (+/-) tolerances of outer coil diameter L0tol 17.66 mm (+/-) tolerance of unstressed spring length Price group T - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm Metal spring characteristic download pdf file CAD data Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm force-path-calculation Compression spring VD-289C Inquiry formular Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm Inquiry formular Compression spring VD-289C Similar compression springs to Compression spring VD-289C Stainless steel Ø 3.2 x 51.8 x 497 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-289C 1.4310 3.2 55 497 177.398 80.46 416.54 15.5 0.426 100.0 | 100.0 | 100.0 | 100.0 D-289C EN 10270-1 3.2 55 497 206.542 80.46 416.54 15.5 0.496 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288K 48 443 0.376 1.4310 140.038 70.3 372.7 86.8 | 88.0 | 84.2 | 88.2 VD-289X-24 48 434 0.42 1.4310 146.398 85.78 348.22 90.4 | 89.4 | 83.1 | 98.7 VD-289C 55 497 0.426 1.4310 177.398 80.46 416.54 100.0 | 100.0 | 100.0 | 100.0 VD-313E 60 516 0.529 1.4310 225.606 89.12 426.88 87.0 | 92.3 | 88.1 | 80.6 VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 82.0 | 85.9 | 86.5 | 73.8 VD-293A 43.2 405 0.637 1.4310 192.755 102.48 302.53 78.6 | 86.7 | 82.3 | 66.8 VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 76.4 | 87.3 | 80.6 | 61.3 VD-293 43.2 405 0.775 1.4310 247.668 85.4 319.61 71.9 | 86.7 | 74.2 | 55.0 VD-318A 54 490 0.796 1.4310 288.238 128.09 361.91 73.3 | 92.3 | 74.2 | 53.5 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 67.2 | 81.6 | 70.7 | 49.4 VD-318 54 490 0.969 1.4310 371.241 106.74 383.26 68.7 | 92.3 | 69.9 | 44.0 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 64.4 | 81.9 | 67.5 | 44.0 VD-344A 68 585 0.972 1.4310 412.591 160.54 424.46 63.7 | 76.6 | 70.6 | 43.8 VD-344 68 585 1.182 1.4310 533.439 133.78 451.22 58.5 | 76.6 | 62.8 | 36.0 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 57.0 | 74.8 | 60.1 | 36.0 VD-364J-05 56 605 1.397 1.4310 410.499 311.18 293.82 55.6 | 79.5 | 56.9 | 30.5 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 55.5 | 81.9 | 55.0 | 29.7 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 50.7 | 74.8 | 53.0 | 24.3 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-289C Country of origin: DE, German; Compression spring VD-289C Product image - Compression springs VD-289C QR-Code: Compression spring VD-289C
