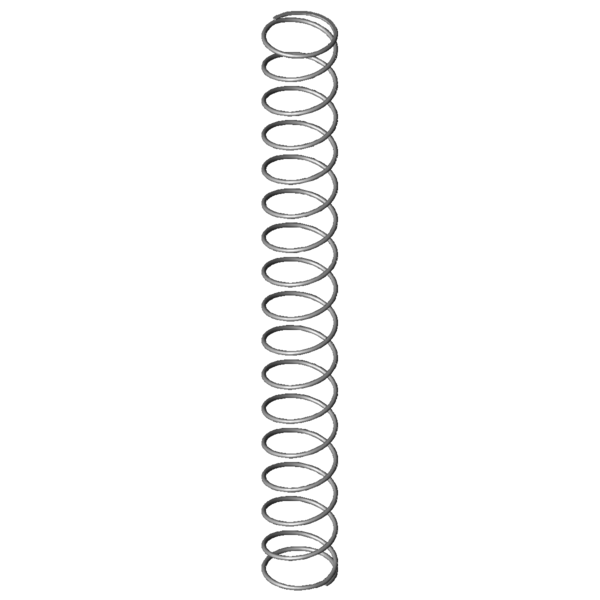

Home » Products » Compression springs » vd-313e Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm Scaled prices - Compression spring VD-313E Quantity Single price [EUR] 1 14.1400 EUR 2 11.2600 EUR 3 6.8900 EUR 7 4.8200 EUR 17 3.2500 EUR 37 2.7900 EUR 75 2.7600 EUR 125 2.7229 EUR 175 2.7020 EUR 250 2.6755 EUR 350 2.6149 EUR Compression spring Buy Product image Compression spring VD-313E Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313E Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 56.4 mm Mean coil diameter De 60 mm Outer coil diameter Dd 51.3 mm maximum diameter of mandrel Dh 63.3 mm minimum diameter of bush L0 516 mm unstressed spring length Lk 441.5 mm buckling length Fn 225.606 N maximum force in static use Ln 89.12 mm Minimum length in static use sn 426.88 mm Maximum spring deflection in static use Fndyn 218.706 N maximum force in dynamic use Lndyn 102.18 mm Minimum length in dynamic use shdyn 101.18 mm Maximum stroke in dynamic use S 33.058 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.529 N/mm Spring rate Weight 249.4838 g weight of one spring Fntol 14.74 N (+/-) tolerance of maximum force in static use Fndtol 14.62 N (+/-) tolerance of maximum dynamic force Detol 1.1 mm (+/-) tolerances of outer coil diameter L0tol 17.55 mm (+/-) tolerance of unstressed spring length Price group AJ - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm force-path-calculation Compression spring VD-313E Inquiry formular Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm Inquiry formular Compression spring VD-313E Similar compression springs to Compression spring VD-313E Stainless steel Ø 3.6 x 56.4 x 516 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313E 1.4310 3.6 60 516 225.606 89.12 426.88 15.5 0.529 100.0 | 100.0 | 100.0 | 100.0 D-313E EN 10270-1 3.6 60 516 262.67 89.12 426.88 15.5 0.615 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288K 48 443 0.376 1.4310 140.038 70.3 372.7 75.7 | 81.2 | 74.7 | 71.1 VD-289X-24 48 434 0.42 1.4310 146.398 85.78 348.22 78.4 | 82.5 | 73.2 | 79.5 VD-289C 55 497 0.426 1.4310 177.398 80.46 416.54 87.0 | 92.3 | 88.1 | 80.6 VD-313V 70 613 0.503 1.4310 257.107 101.52 511.48 89.1 | 86.6 | 85.6 | 95.1 VD-313E 60 516 0.529 1.4310 225.606 89.12 426.88 100.0 | 100.0 | 100.0 | 100.0 VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 92.5 | 90.4 | 95.7 | 91.6 VD-339J 75 615 0.661 1.4310 332.691 111.4 503.6 79.2 | 81.3 | 76.3 | 80.0 VD-318A 54 490 0.796 1.4310 288.238 128.09 361.91 79.8 | 91.7 | 81.5 | 66.4 VD-313U 70 379 0.82 1.4310 257.266 65.32 313.68 76.0 | 83.1 | 80.6 | 64.4 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 76.4 | 87.3 | 80.6 | 61.3 VD-318 54 490 0.969 1.4310 371.241 106.74 383.26 73.8 | 91.7 | 75.3 | 54.6 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 70.6 | 81.6 | 75.7 | 54.6 VD-344A 68 585 0.972 1.4310 412.591 160.54 424.46 71.4 | 82.8 | 77.1 | 54.4 VD-339Z-04 75 430 1.181 1.4310 384.903 104.1 325.91 63.6 | 78.4 | 67.5 | 44.7 VD-344 68 585 1.182 1.4310 533.439 133.78 451.22 65.3 | 82.8 | 68.4 | 44.7 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 63.6 | 78.9 | 67.1 | 44.7 VD-364J-05 56 605 1.397 1.4310 410.499 311.18 293.82 60.4 | 81.4 | 61.9 | 37.8 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 59.7 | 81.6 | 60.7 | 36.9 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 55.3 | 78.9 | 56.7 | 30.2 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 53.7 | 81.0 | 52.7 | 27.2 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-313E Country of origin: DE, German; Compression spring VD-313E Product image - Compression springs VD-313E QR-Code: Compression spring VD-313E
